Wanhao Duplicator 9 is the 2018 newest FDM 3D printer from Wanhao, manufacturer based in China since 2013.
Wanhao Duplicator 9 Main features
- Up to 100 micron (0.100mm)
- Max printing speed 70mm/s

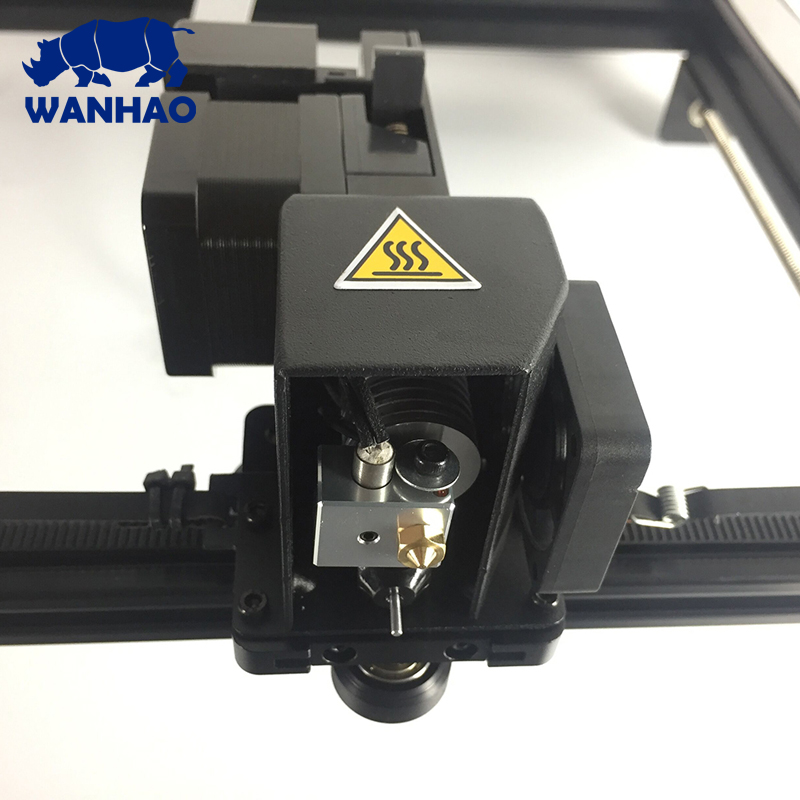

- Full metal hot end / MK10 nozzle (up to 300°C)
- Resume printing after power outage (or pause)
- Auto bed leveling with Sensor (probe)
- Big Touchscreen (with smart touch display)
- Large build sizes and Full metal frame
- Heated print bed
This machine, Wanhao Duplicator 9 Mark I is now available with 3 large build volumes:
- Wanhao D9/300: 300 x 300 x 400 mm
- Wanhao D9/400: 400 x 400 x 400 mm
- Wanhao D9/500: 500 x 500 x 500 mm

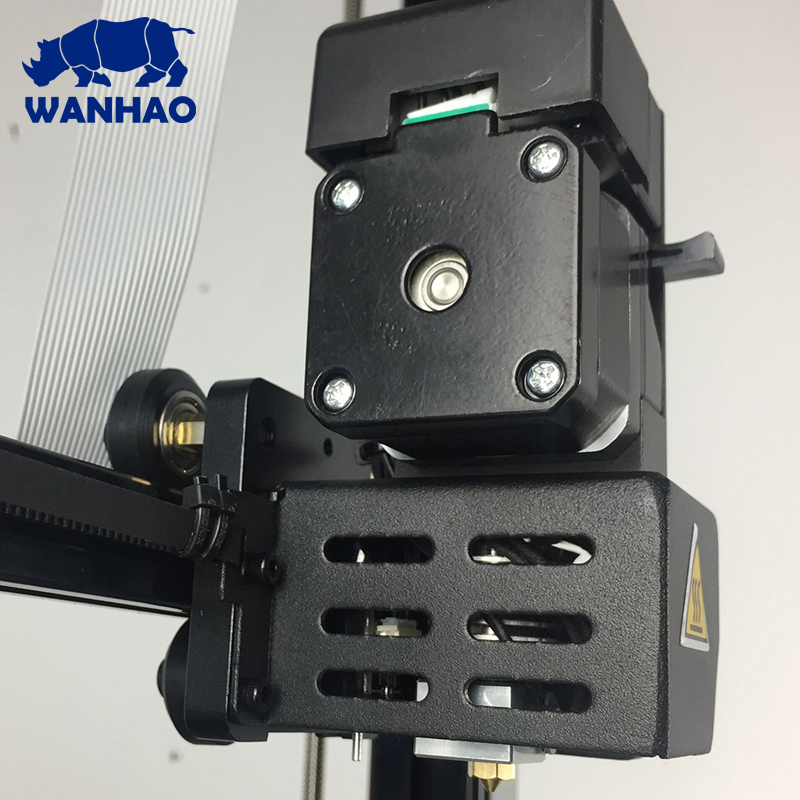

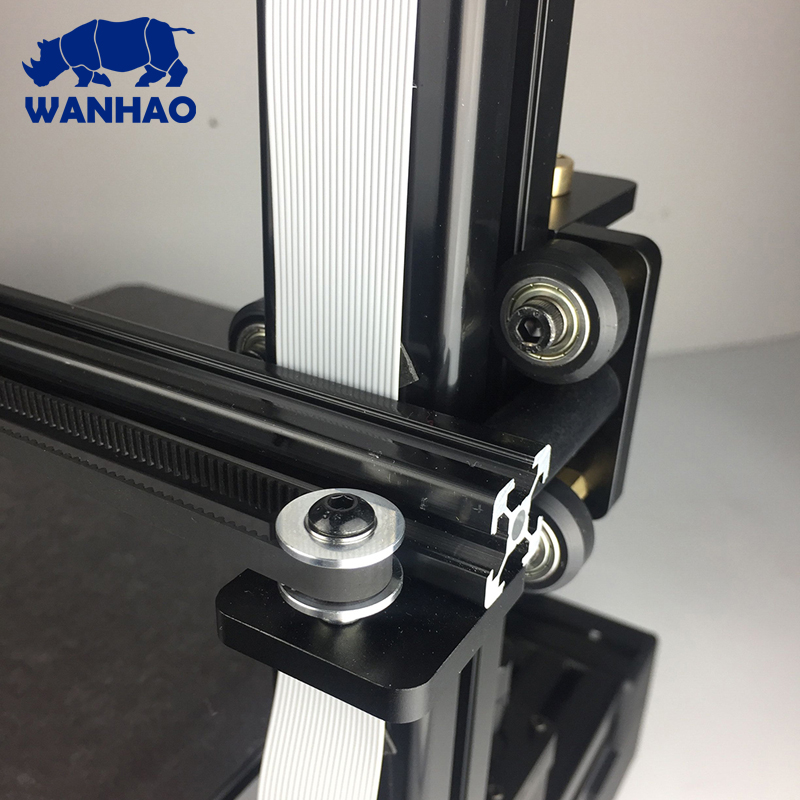

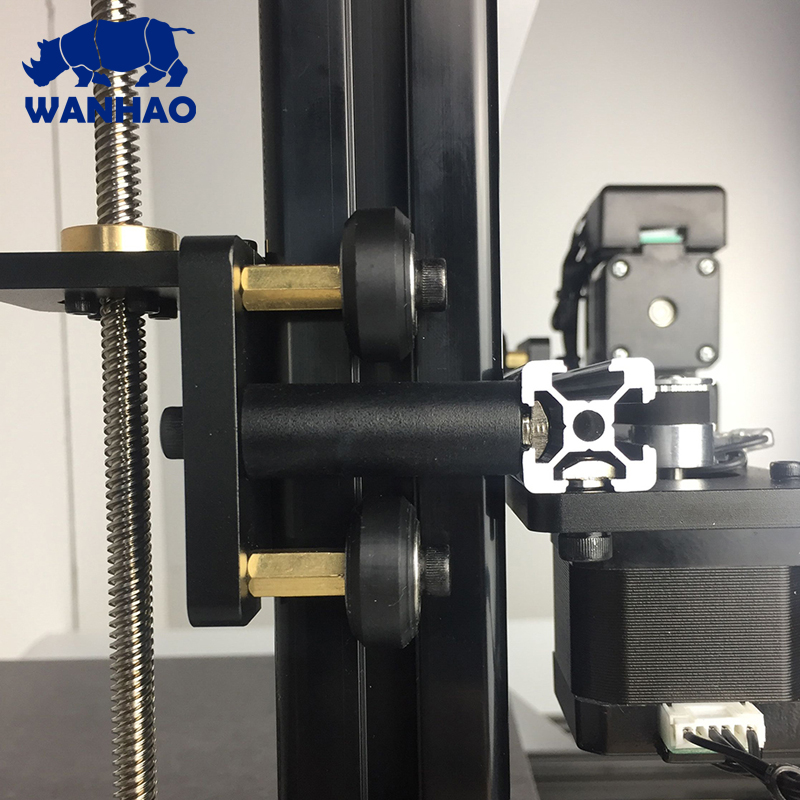

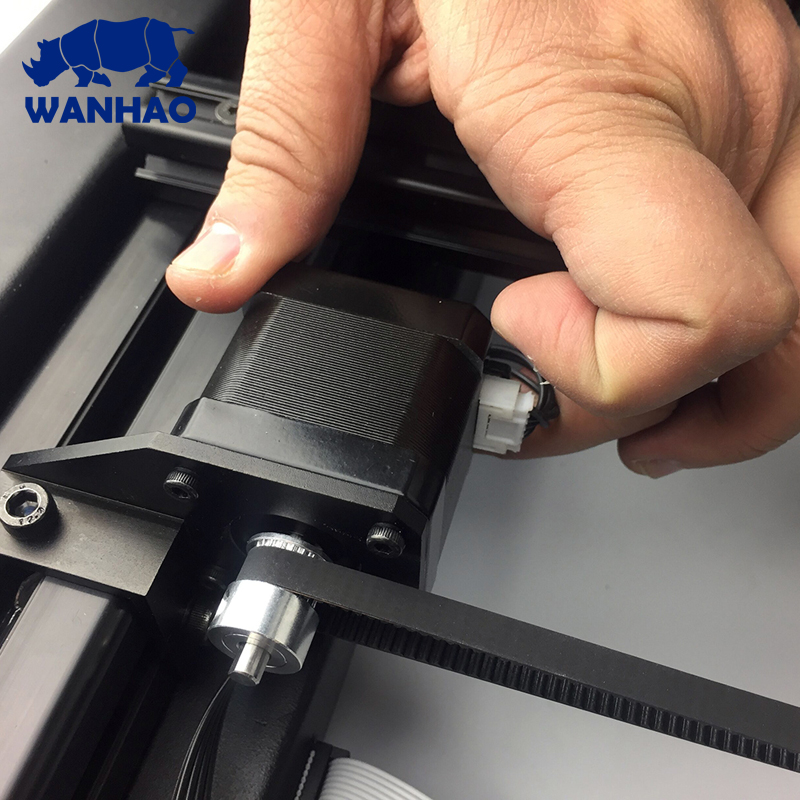

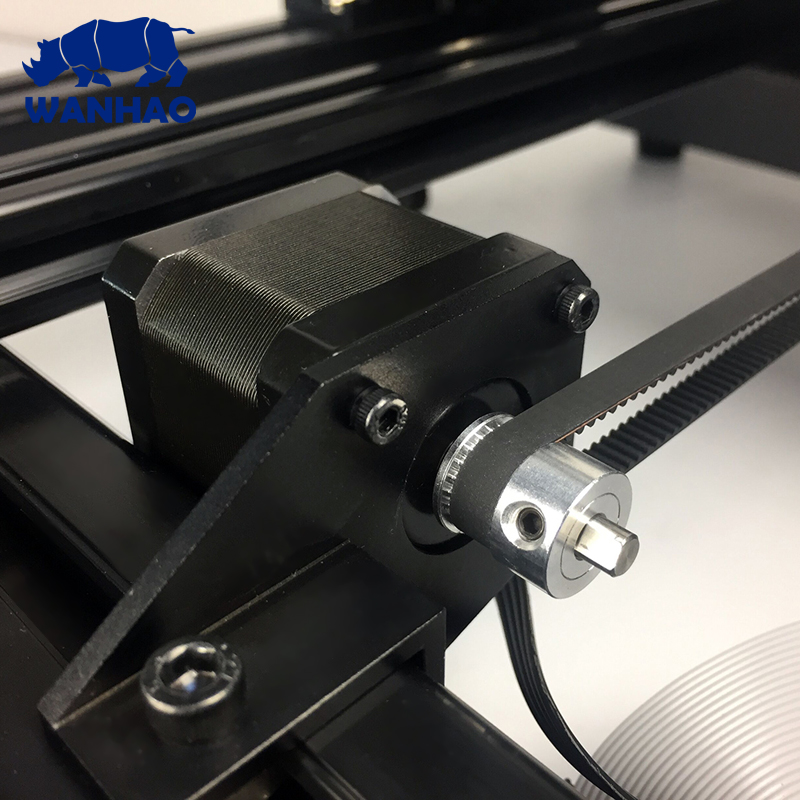

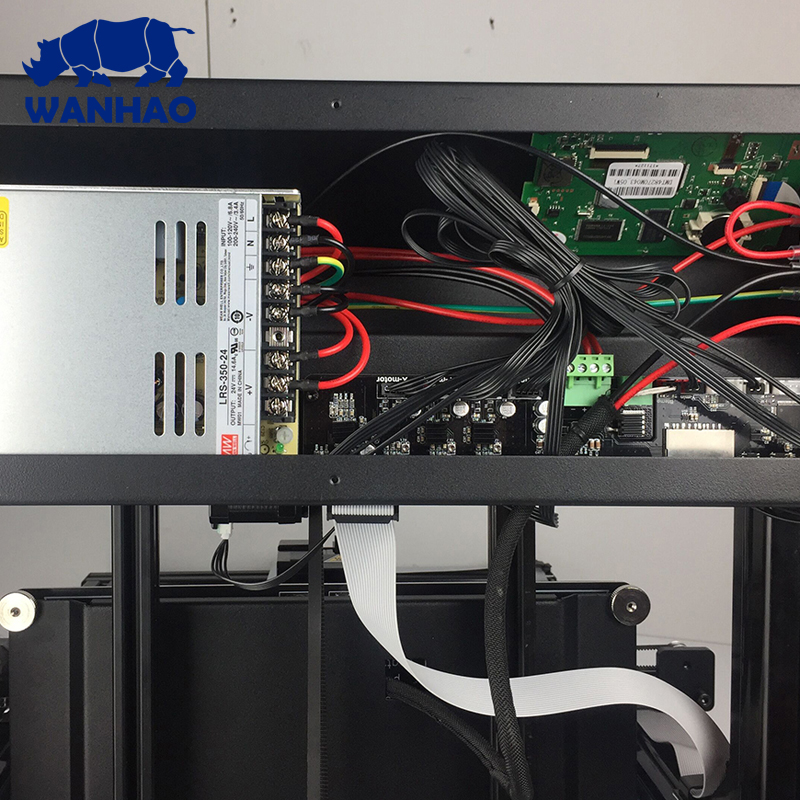

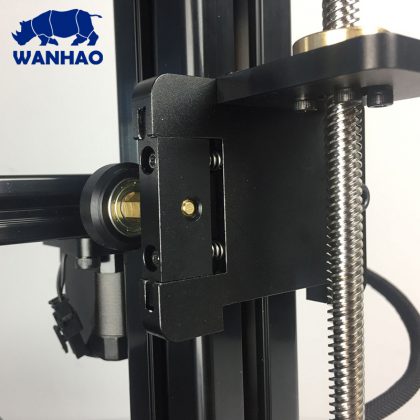

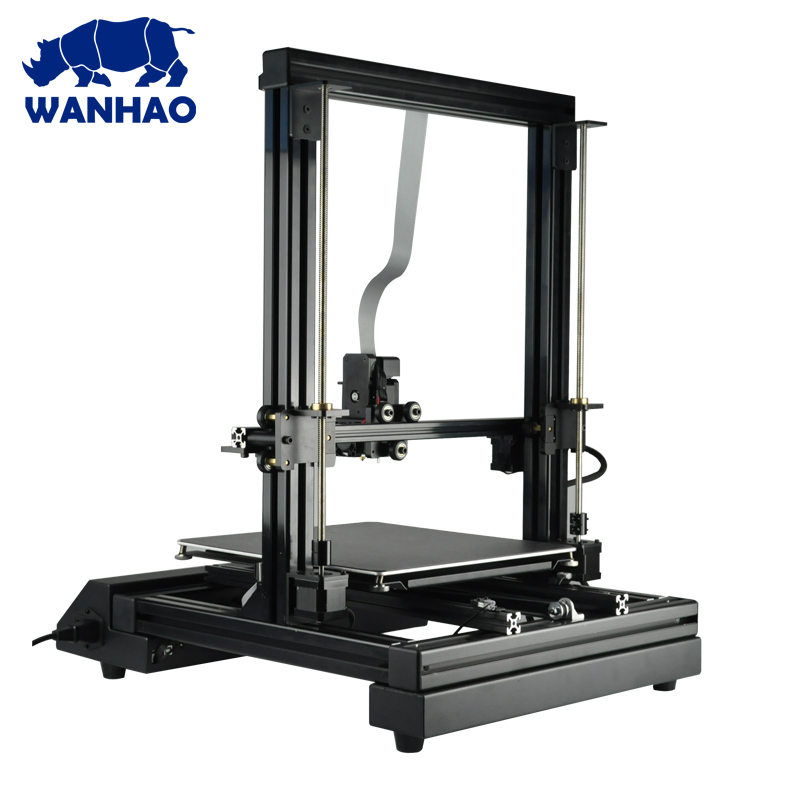

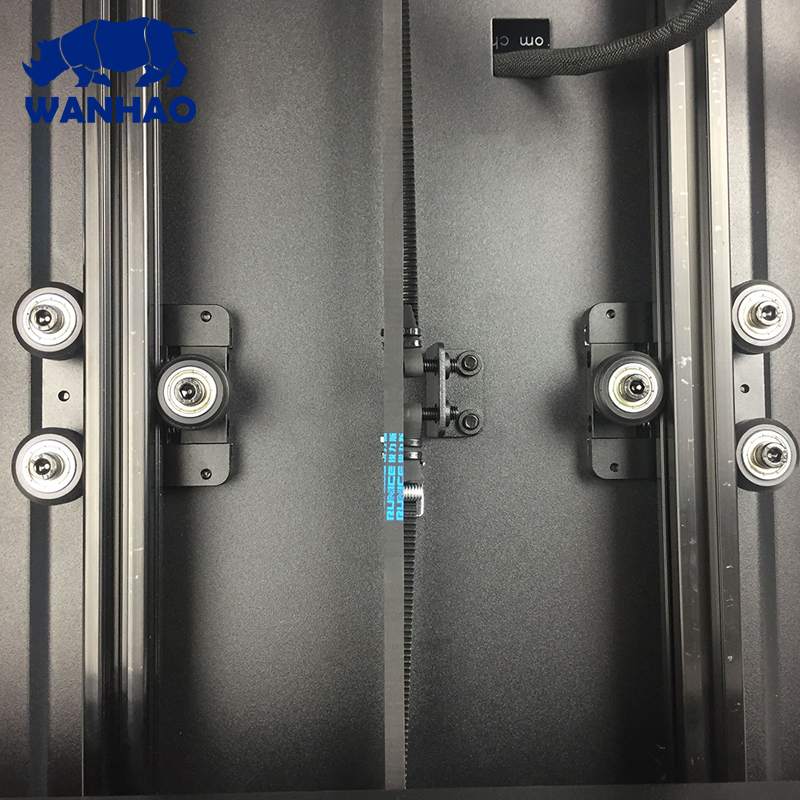

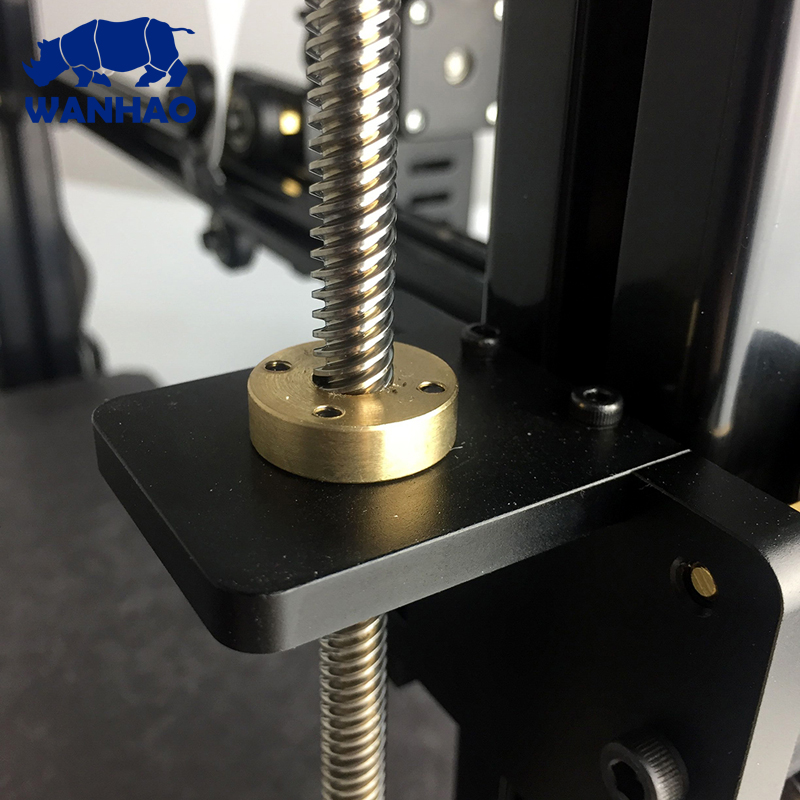

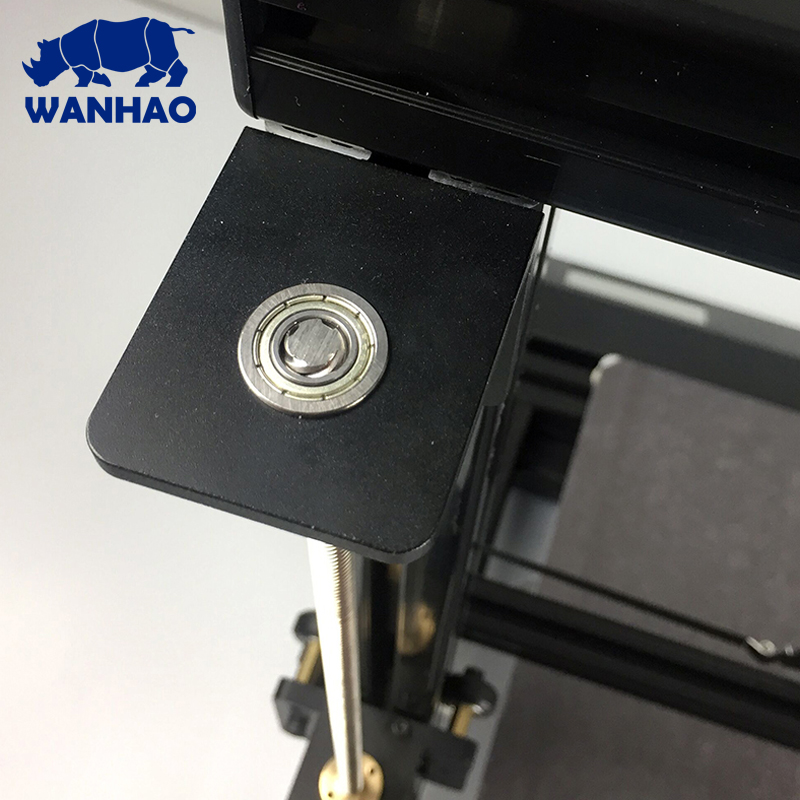

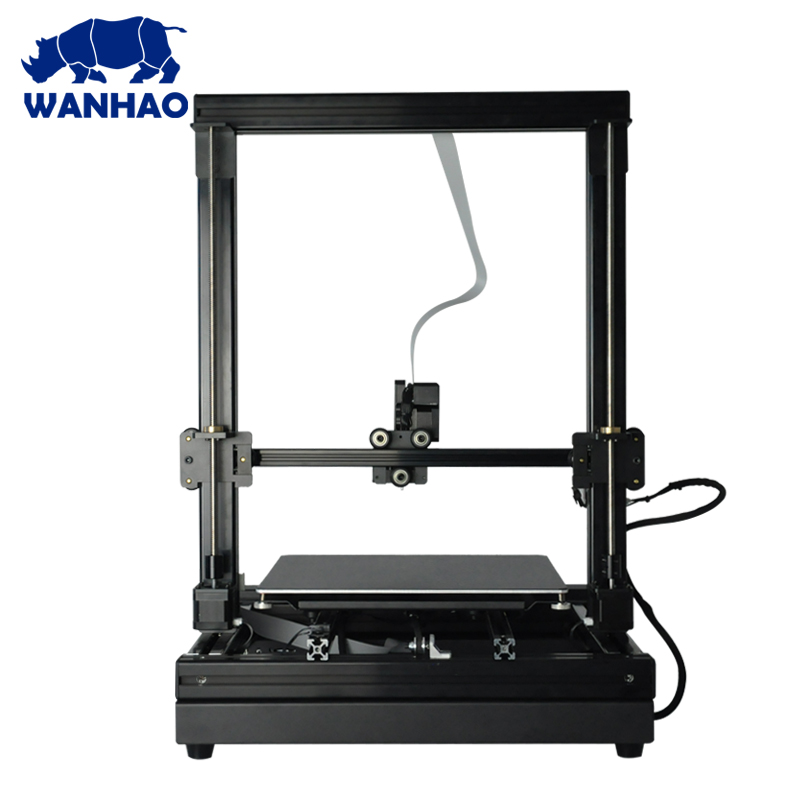

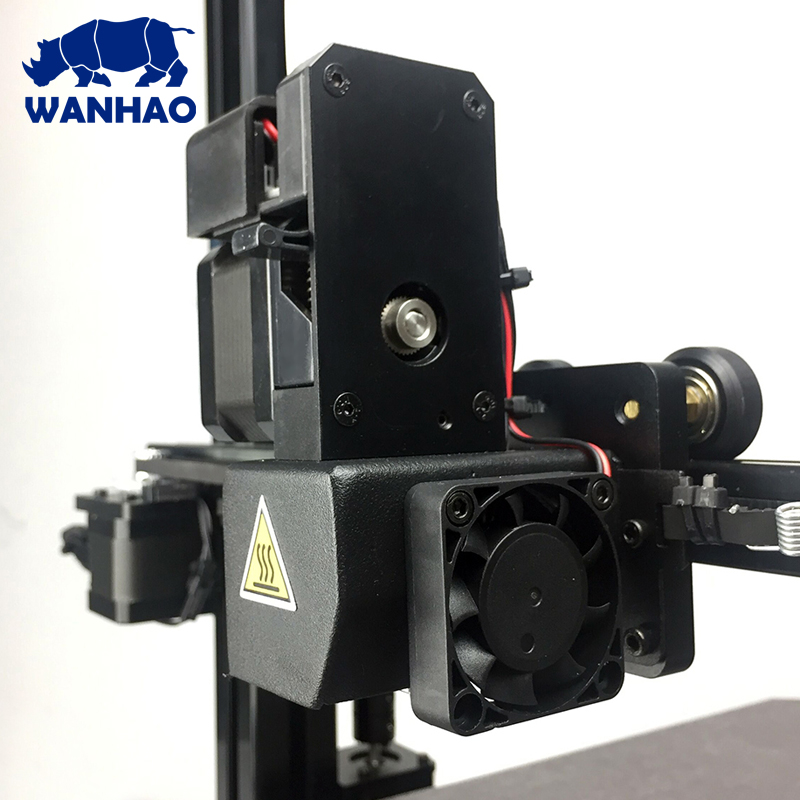

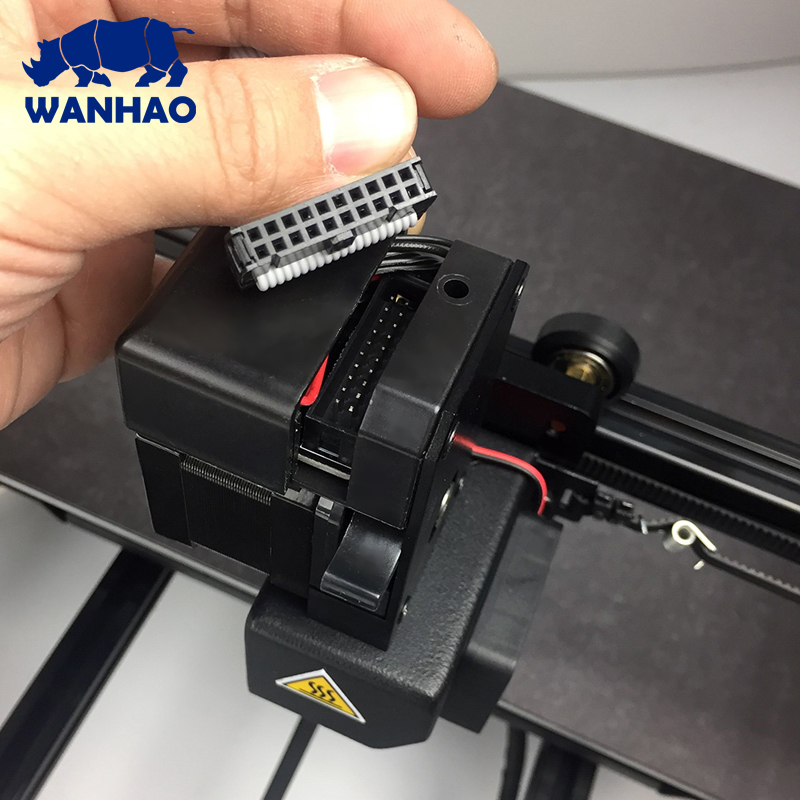

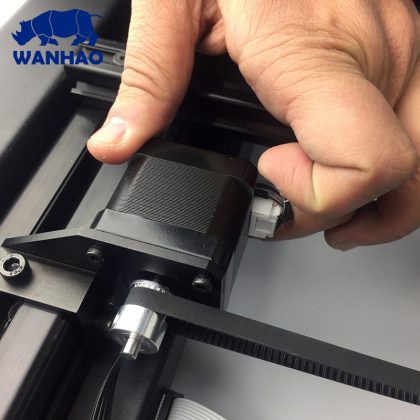

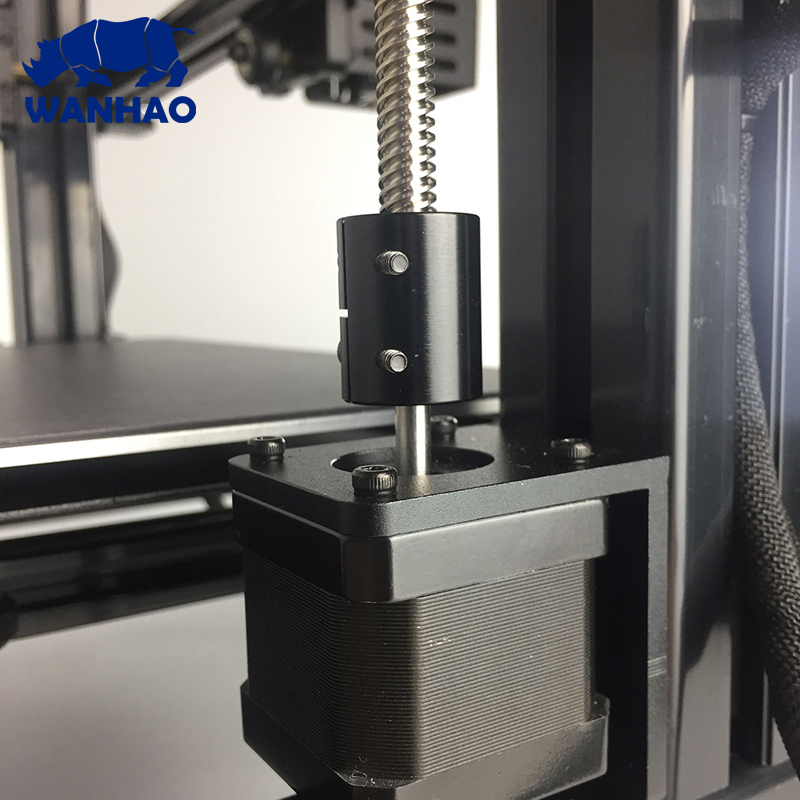

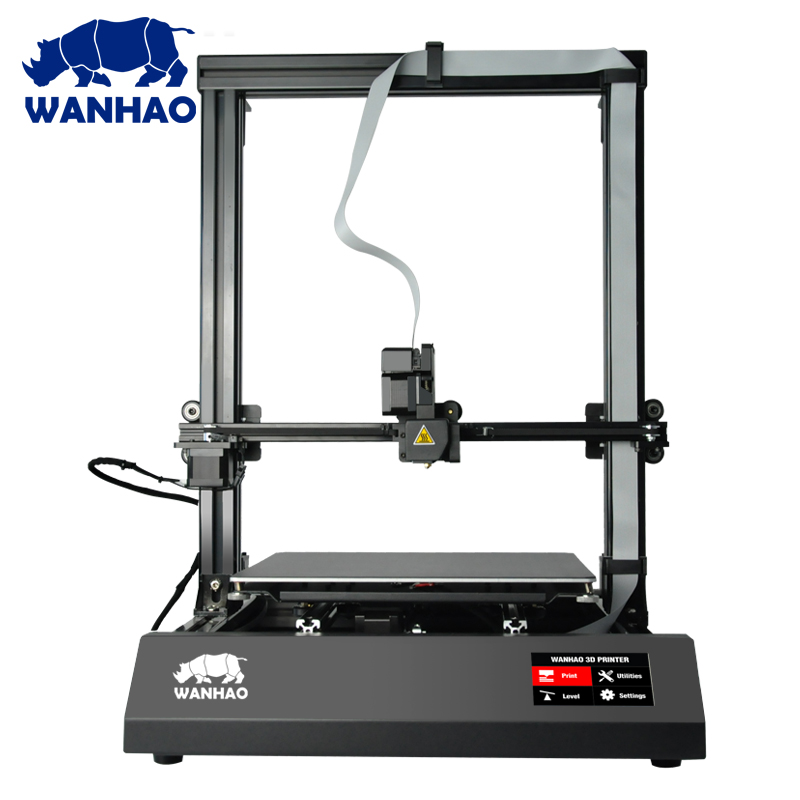

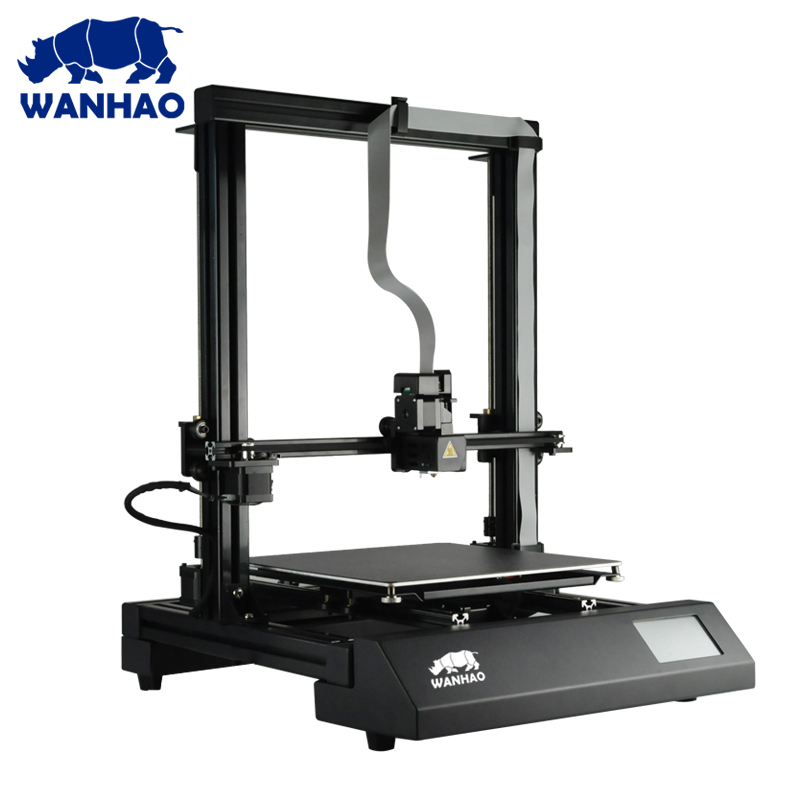

Wanhao Duplicator 9 gallery
Wanhao Duplicator 9 Technical Specifications
| Primary attributes of the technology | PLA printer, entrance level printer.
Full assembled. Developped from Prusa i3. |
| Software | CURA, host by Repetier, Simplify3D (S3D) |
| Extruder system | MK10 extruder with full metal hot end |
| Material support | PLA, PVA, PEVA, PLA, Nylon, Any material melting up to 300°C |
| Max printable area (3 machines) |
|
| Filament diameter/light | 1.75mm |
| Max printing speed | 70mm/s |
| Case Material | Aluminum Case |
| With Insulate cover or not | Insulate Tent Available |
| Extruder Quantity | 1 |
| Accuracy | X 0.012mm Y 0.012mm
Z 0.004mm |
| Net Weight(kg) | 20 kg |
| Gross Weight(kg) | 22 kg |
| Material cost | $ 12 / $35 |

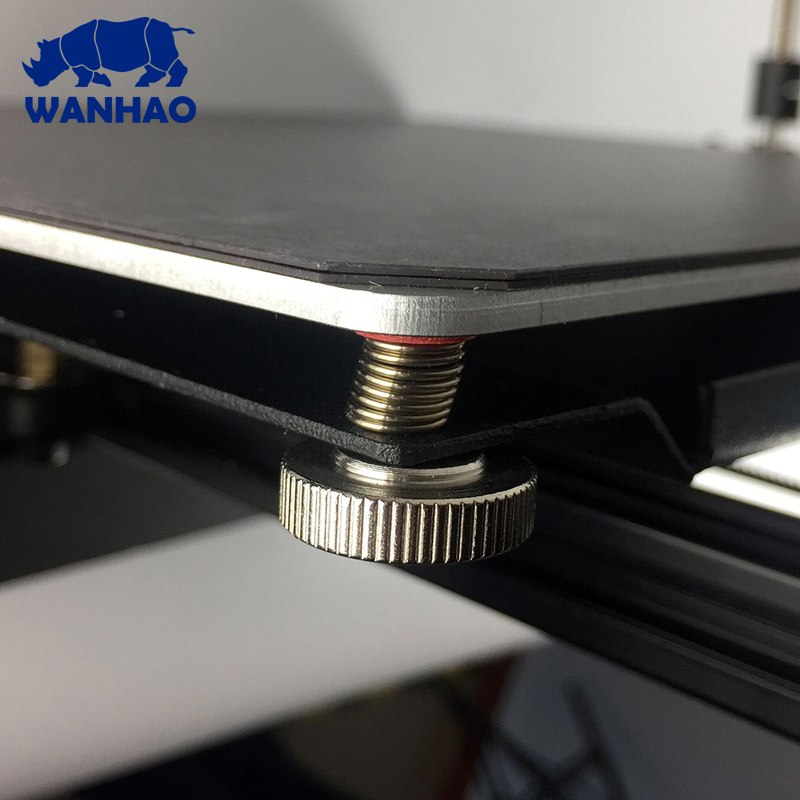

| Bed leveling | 4 Points leveling |
| Packing size(cm) | 60*50*35cm |
| Plateform Holder | Steel frame holder |
| Rail locking system | Steel bolt locking frame |
| Layer Thickness | 100 micron- 400 micron |
| Plateform | Aluminium plateform W/ heating, |
| Resume printing | Can resume printing after power outage |
| LCD display | English, Chinese and customized any languages |
| Power supply unit | Inside 110 AND 250V(optional), 50/60Hz, 4.0A (input), and takes standard IEC cable |
| Typical application | •A perfect printer for educators who intend to use the printers in technical educatioin.
•Great printer for DIY hobbist. |
