Raise3D N2 Plus

The Raise3D N2 Plus is a XXL machine that is designed for processing a wide range of thermoplastics. It’s affordable and reliable with a massive build volume. What more do you need?

3D printer Ships from Type Print area Assembly Price
Best 3D Printer Raise3D N2 Plus Raise3D N2 Plus USA FFF / FDM
  • 305 x 305 x 610 mm
  • 12.0 x 12.0 x 24.0 inches
Fully assembled $3,899.00
3D printer Ships from Type Print area Assembly Price
Best 3D Printer Raise3D N2 Dual Raise3D N2 Dual USA FFF / FDM
  • 305 x 305 x 305 mm
  • 12.0 x 12.0 x 12.0 inches
Fully assembled $2,999.00


The Raise3D Printer Features

The Raise3D N2 PlusFFF has a huge 12in*12in*24in (305mm*305mm*610mm) build area.

It features a 7″ full-color touchscreen built into the 3D printer. You can easily monitor the print process and control the printer with a simple touch from your fingertip and access the touchscreen through WIFI, LAN, USB and SD card. Along with a heated bed that can heat up to 110°C and all aluminum metal frame (and much more!)

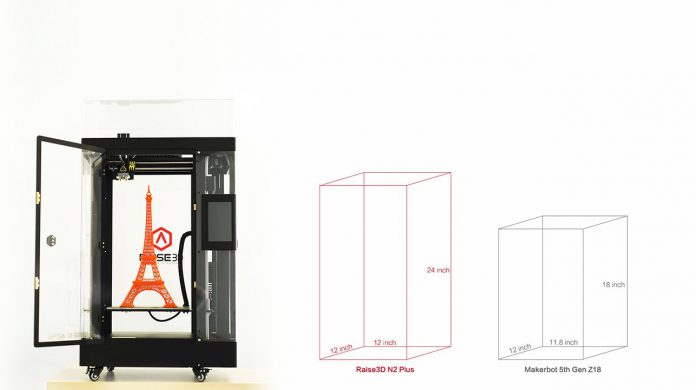

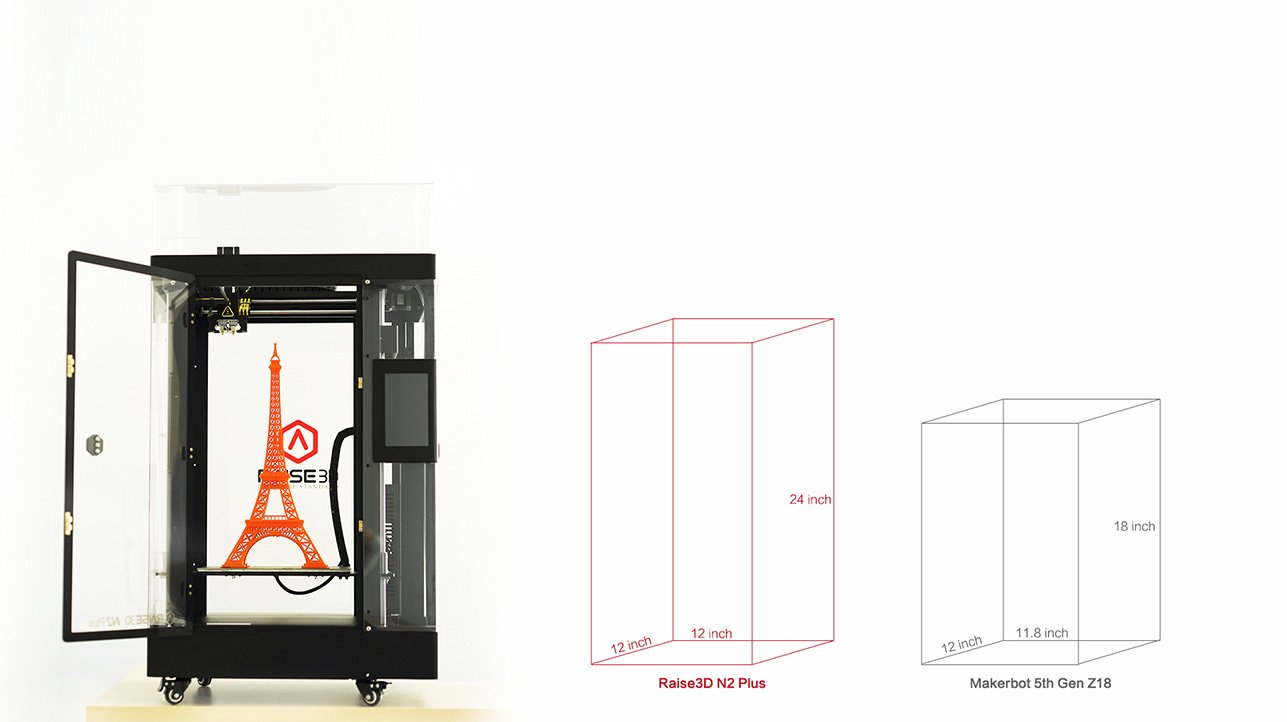

Build Volume 12″ x 12″ x 24″ (305 x 305 x 610 mm)

Huge Build Volume : 12×12×24 in (305×305×610 mm)

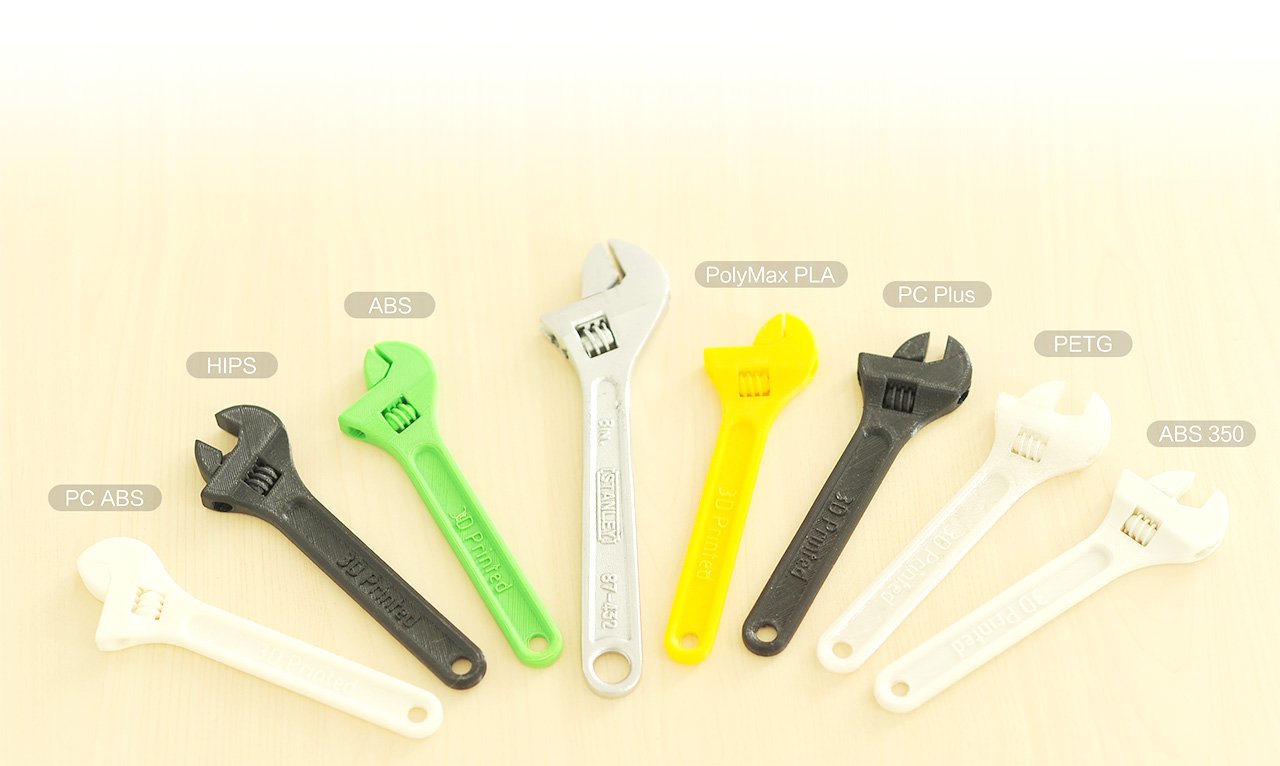

Compatible with Most Filaments Available

With our innovative patent-pending all-metal hotend, N2 Plus can print most filaments you can find! The list includes but not limits to PLA, ABS, PC, PETG, HIPS, NinjaFlex.

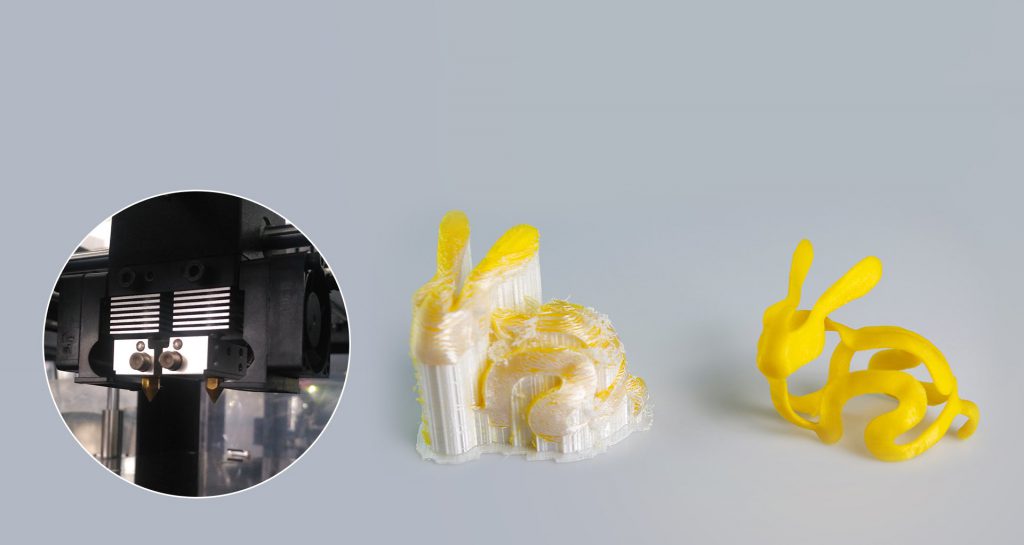

With dual-extruder, you can print with 2 different filaments at the same time. You can make prints with 2 colors or use one filament as the support material to make more complicated models.

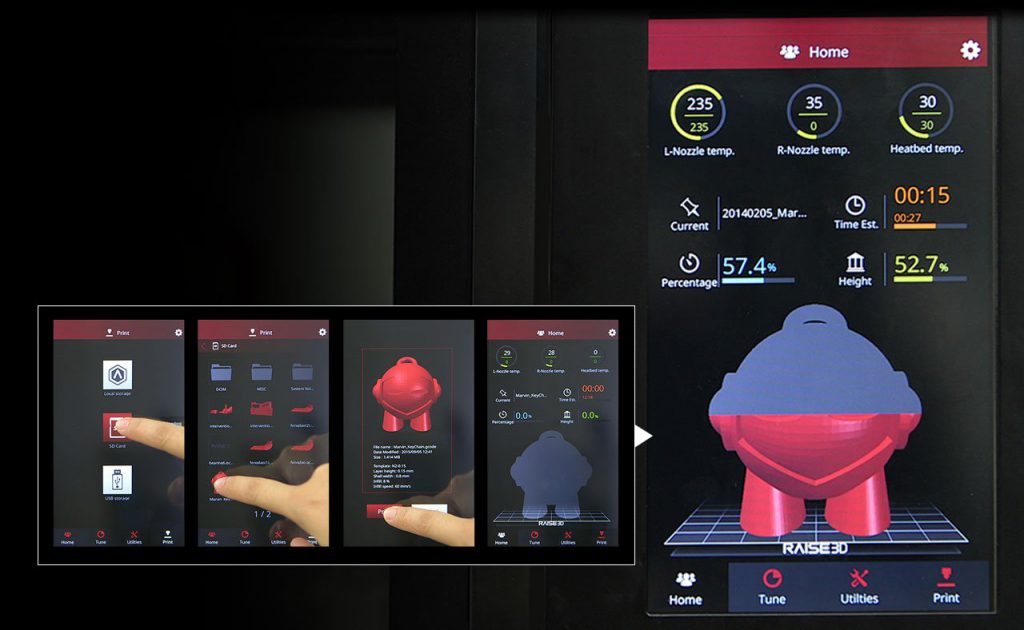

7” Full Color Touchscreen

FIRST EVER! Monitor the print process and control the printer on a simple touch from your finger tip. You can access the touchscreen through WIFI, LAN, USB and SD card.

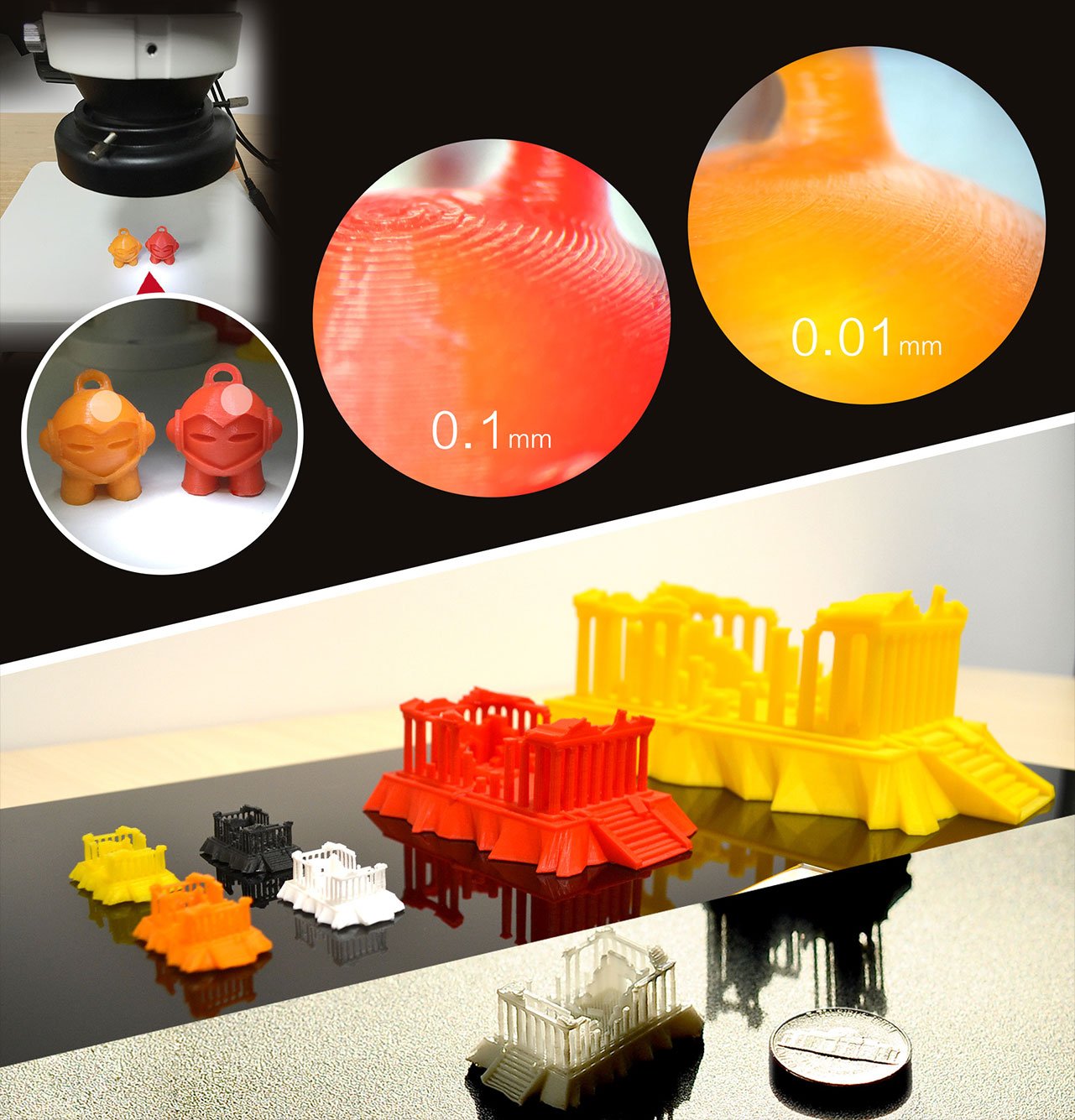

Great Print Quality and Accuracy

Up to 10 micron Z resolution and 12.5 micron X/Y step size to achieve the best print quality and accuracy.

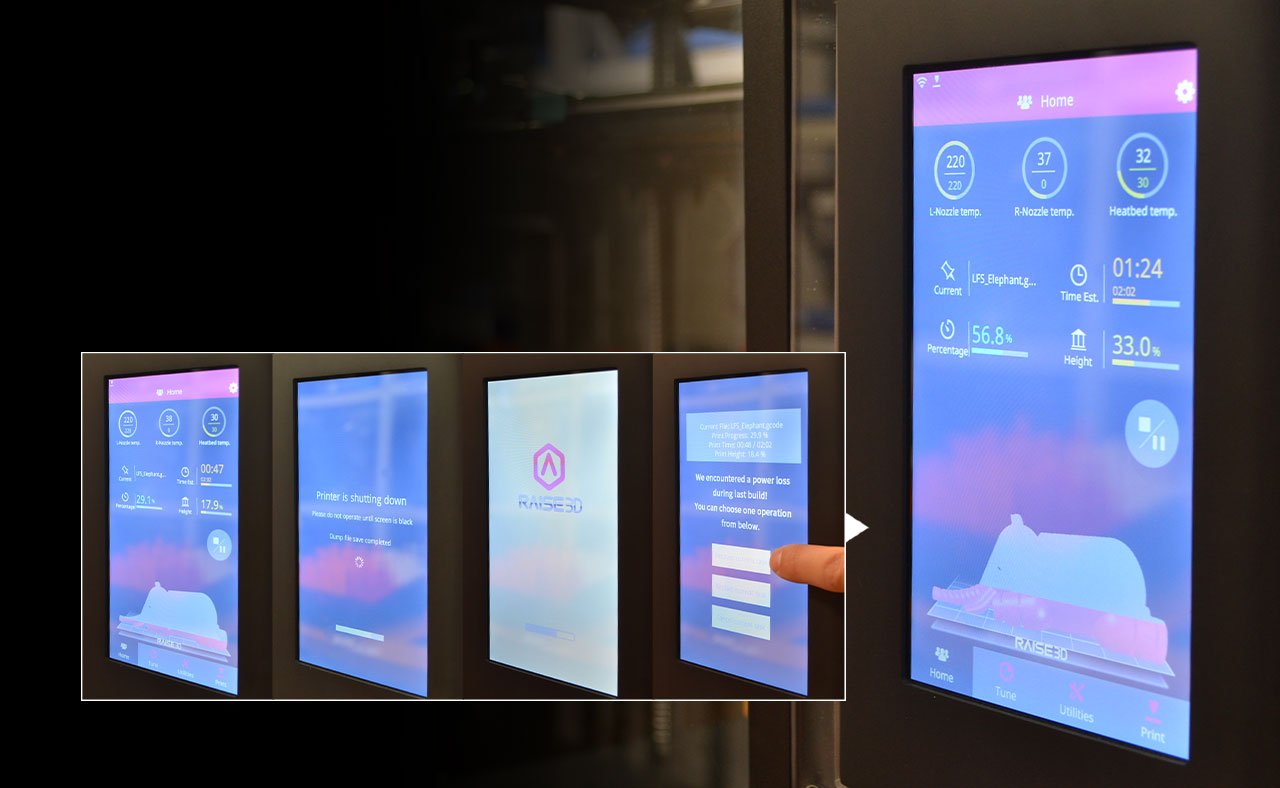

Print Resuming

No more frustrating print interruption (power outage, etc). You can resume an interrupted print like it never happen!

Other Technical Specifications:

A heat bed that can heat up to 110°C

All aluminum metal frame

Build platform is pre-calibrated at the factory

Fully enclosed design for better print quality and improved safety

On-board computer to accommodate future Expansion and experimentation

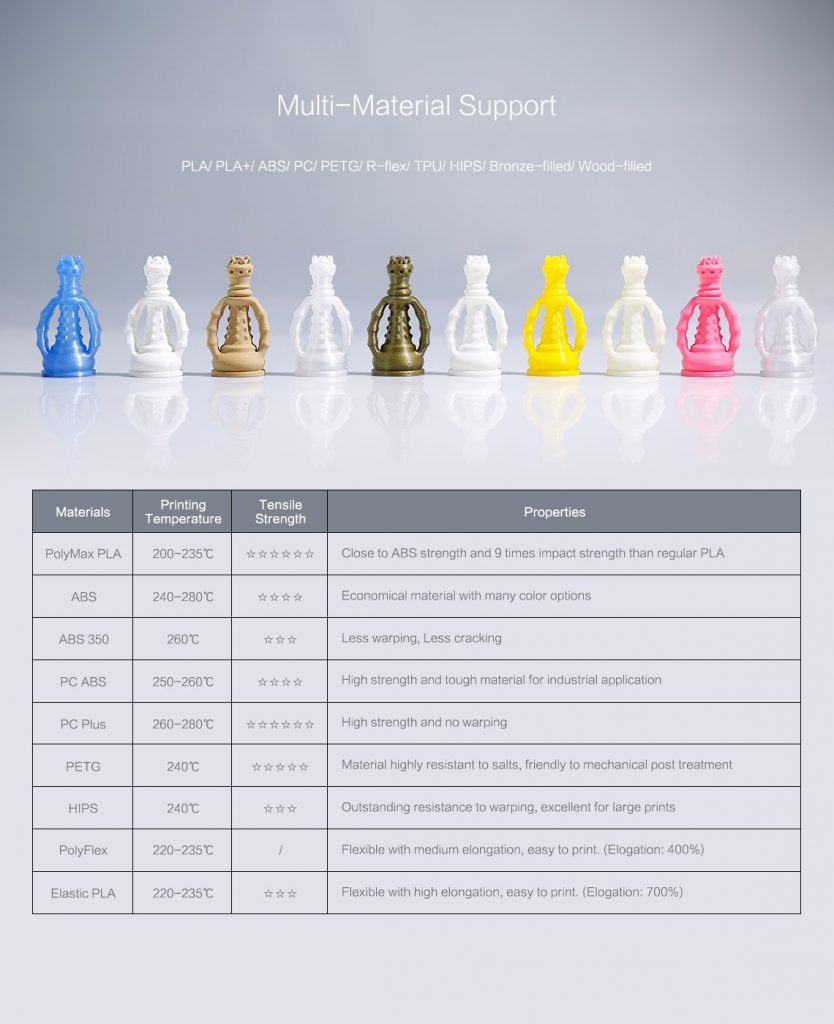

Multi Material Support

PLA, PolyMax Pla, ABS, ABS 350, PC ABS, PC PLUS, PETG, HIPS, PolyFlex, Elastic PLA



Print Technology: FFF
 Build Volume (WxDxH): 12x12x24 inch / 305x305x610 mm
 Layer Resolution: 0.01~0.25 mm
 Filament Type: PLA/ PLA+/ ABS/ PC/ PETG/ R-flex/ TPU/HIPS/ Bronze-filled/ Wood-filled
 Printing Surface: Buildtak
 Heated Build Platform: Yes
 Enclosure: Yes
 Nozzle Diameter: 0.4 mm (0.016 in)
 Nozzle Working Temperature: 170-300 ℃
 Number of Nozzles: 1 (standard) / 2 (optional)
 Printing Speed: 10 ~ 150 mm/s
 Moving Speed: 150 ~ 300 mm/s
 Positioning Accuracy: XY-axes: 0.0125 mm, Z-axis: 0.00125 mm


Slicing Software: ideaMaker, Simplify3D
 Supported File Types: .stl, .obj
 Supported OS: Windows XP and later versions, Mac, Linux
 Machine Code Type: gcode

Printer controller

 User Interface: 7 inch capacitive touch-screen
 Screen Resolution: 1024*600
 Motion Controller: ATmega2560
 Logic Controller: Freescale imx6, Quad core 1Ghz ARM processor
 Memory: 1GB
 Onboard Flash: 8GB
 OS: Embedded Linux
 Ports: Sdcard*1, Usb2.0*4, Ethernet*1
 Extendable Ports: PWM*2, I2C*1, SPI*1, UART*1, GPIO*4, 8Bit ADC*5, USB2.0*1, 5v-1A*2, 3.3v-200mA*1, Reset*1, Gnd*3
 Network: Ethernet, 802.11b/g/n Wifi
 Camera: Future planned


Frame: Aluminum
Enclosure: ABS, Acrylic and Polycarbonate
Machine Size (WxDxH): 24.3×23.2×43.8 inch / 616x590x1112 mm


Power Supply Input: Universal 100-240 VAC, 50/60 Hz
Power Supply Output: 600 Watts, 24 VDC

Verified materials filament

1. R3D premium
 2. R3D colorful
 3. PolyMaker: all filaments
 4. Esun: PLA, ePC, Flex, PETG, ABS, Elastic, Particle-filled PLA
 5. Filament CA: ABS, HIPS, Flex, PETG, TPU
 6. NinjiaFlex
 7. Colorfab: all PLA
 8. Zortrax: all filaments
 Taulman-on schedule

Customers verfied materials

1. Taulman: T-glass, Alloy910
 2. EUMaker: PLA
 3. Wanhao: PLA
 4. ECO: ABS
 5. 3D2print: ABS
 6. 3D Prima: PLA
 7. Makerbot: PLA
 8. iGo3d: ABS
 9. Hobbyking: PLA, Bronzefill, POM
