Features
-

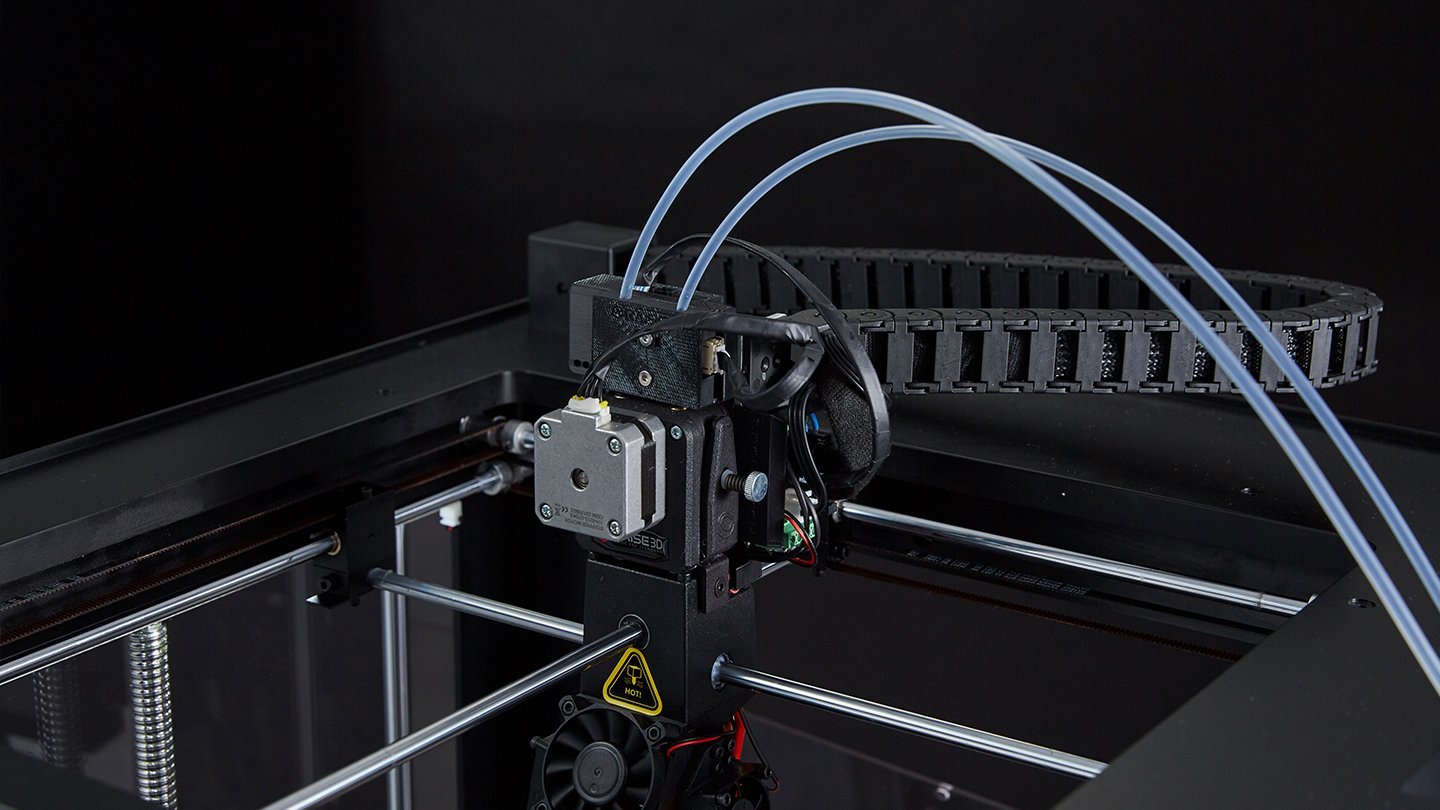

- Dual Extruder: Electronic driven lifting; 4× increased torque performance.
- Massive Build Volume.
- 0.01mm Layer Height.
- Filament Sensor / Camera / Filter.
- Wide Filament Compatibility (300ºC).
- Resume Print after Power Outage.
- 7″ Touch Screen / Wireless Compatibility.

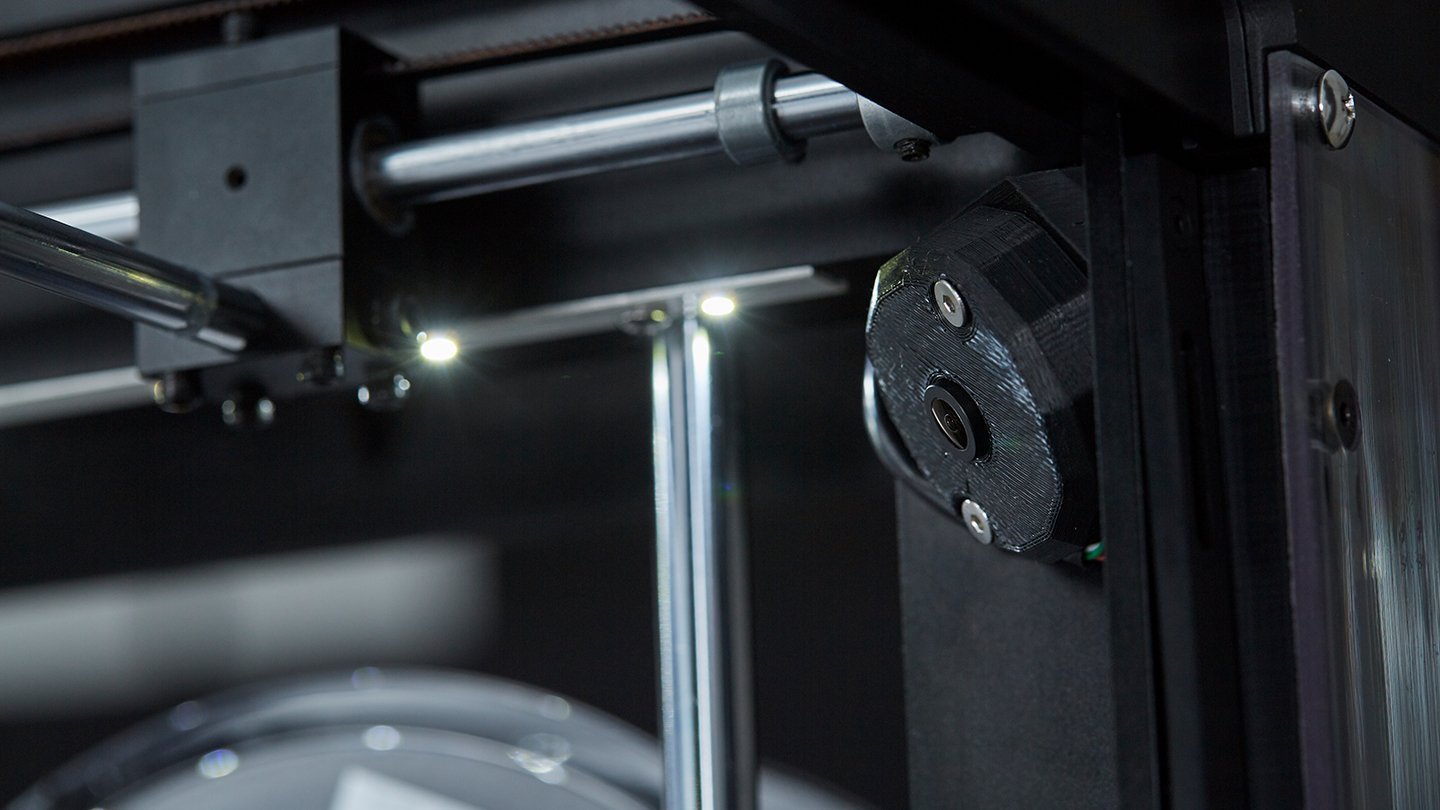

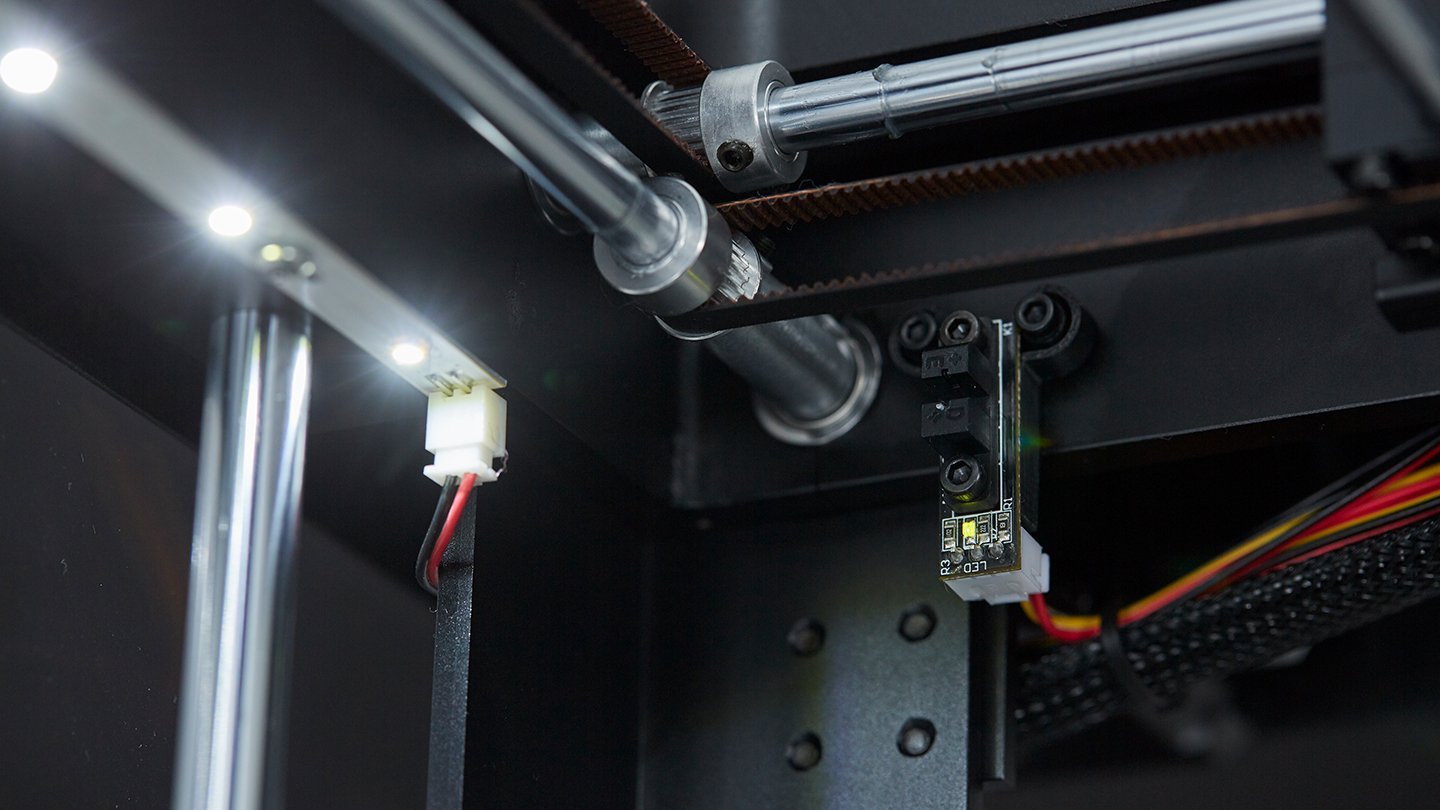

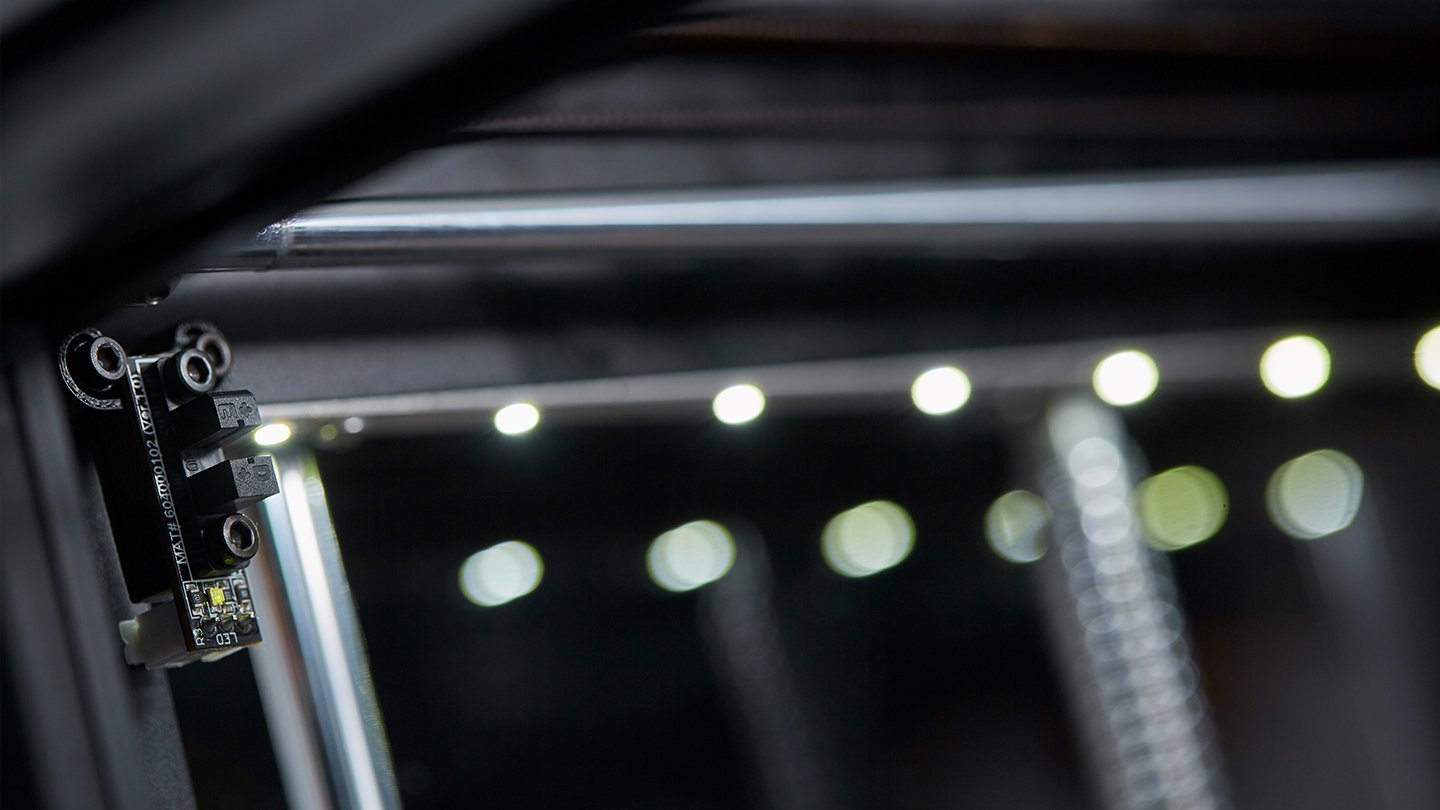

- optical end stops
- Motion Controller: ARM Cortex M7.400MHZ FPU (ATmega2560 on N2)
- Power Supply Output: 600 Watts, 24 VDC (450 Watts on N2 series)

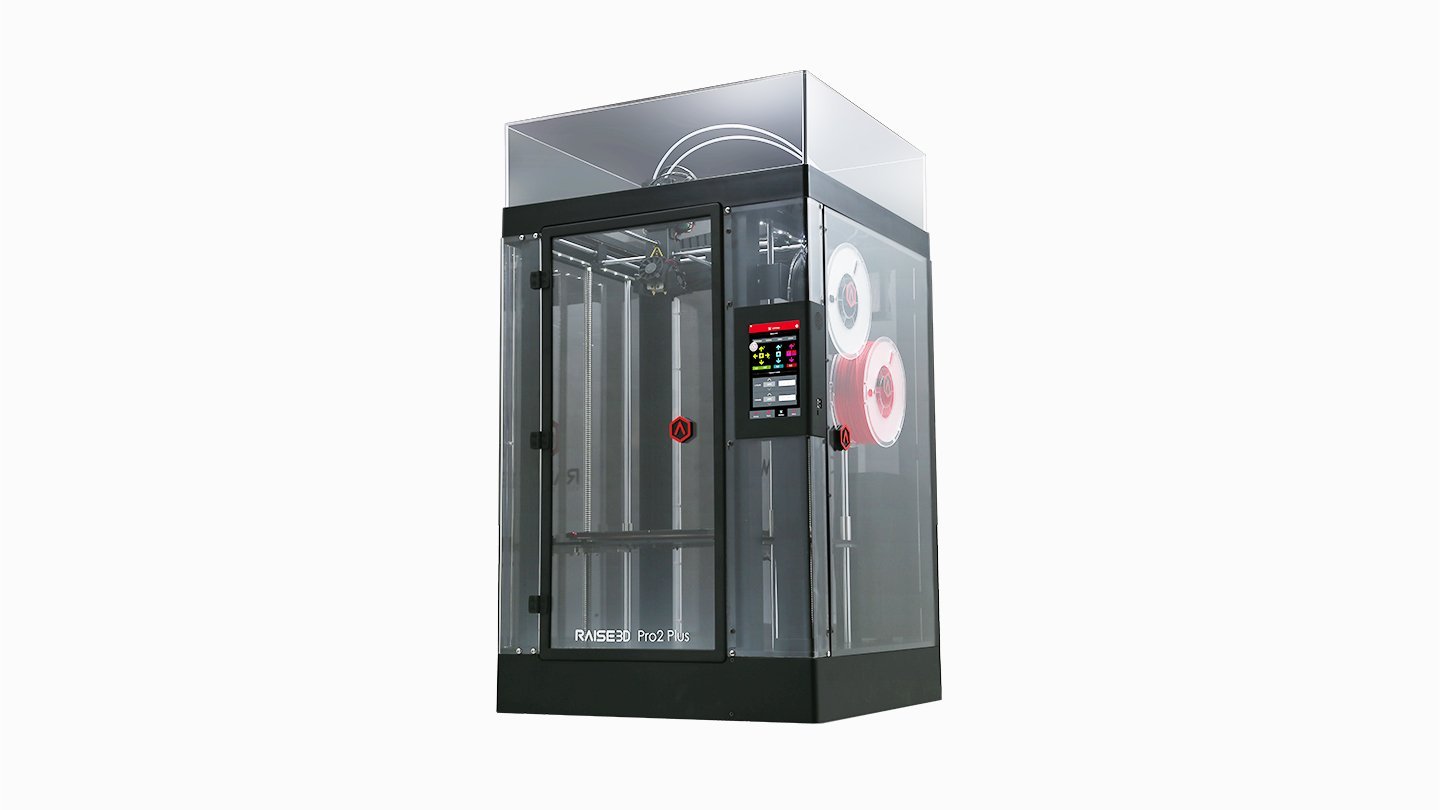

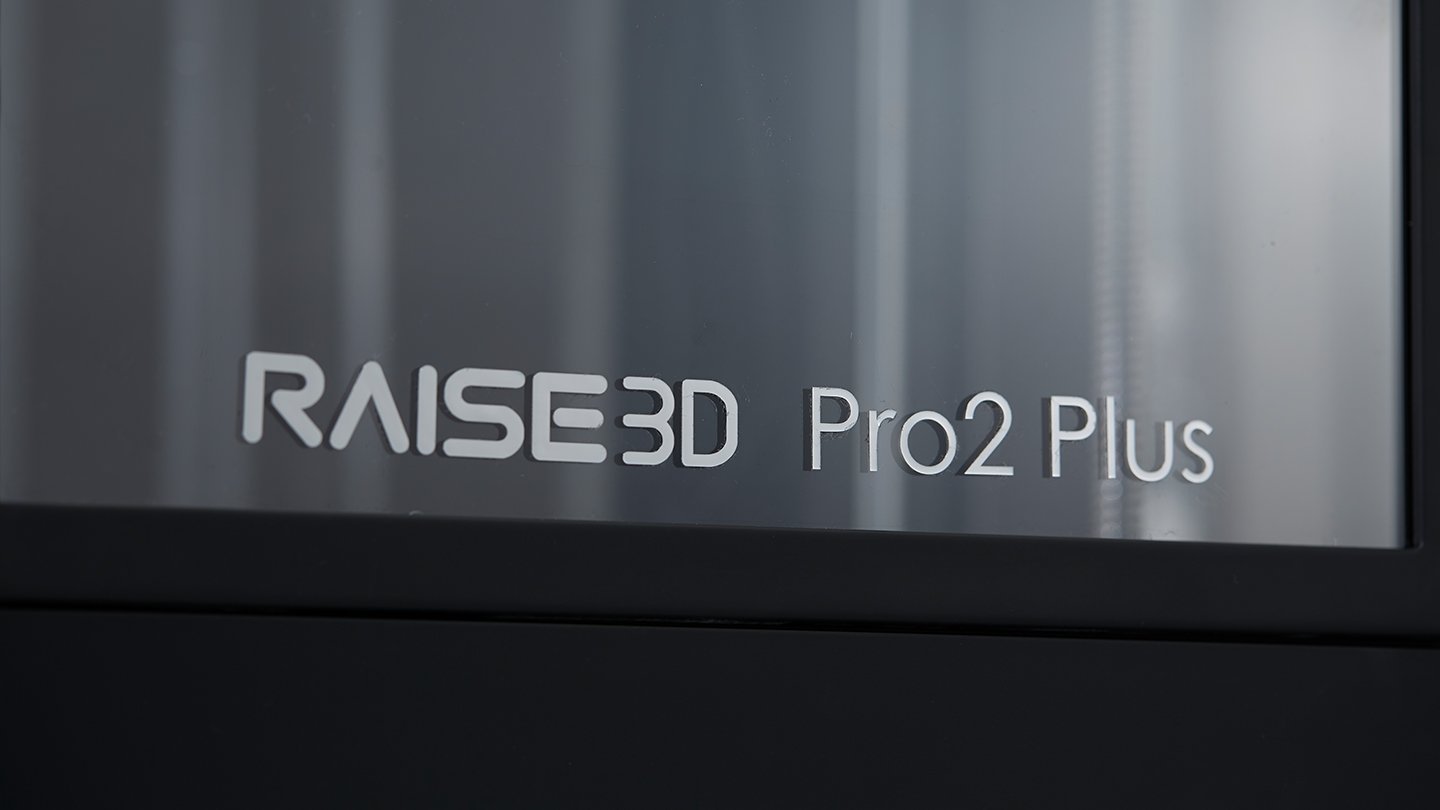

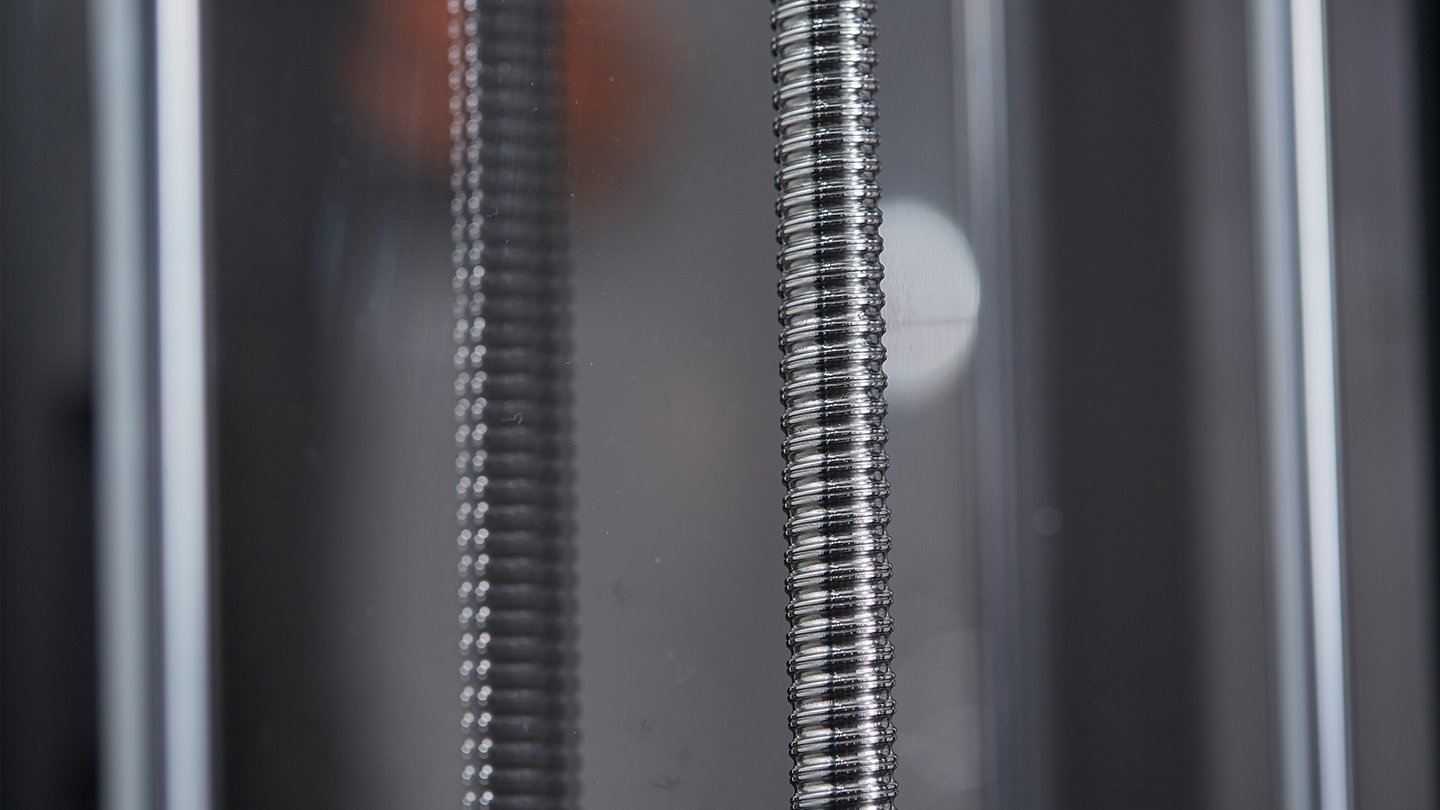

Raise3D Pro2 Plus Series Gallery
Technical Specifications
General
Print Technology: FFF
Build Volume (W×D×H):
Single Extrusion: 12×12×11.8 in / 305×305×300 mm
Dual Extrusion: 11×12×11.8 in / 280×305×300 mm
Machine Size (W×D×H): 24.4×23.2×29.9 in / 620×590×760 mm

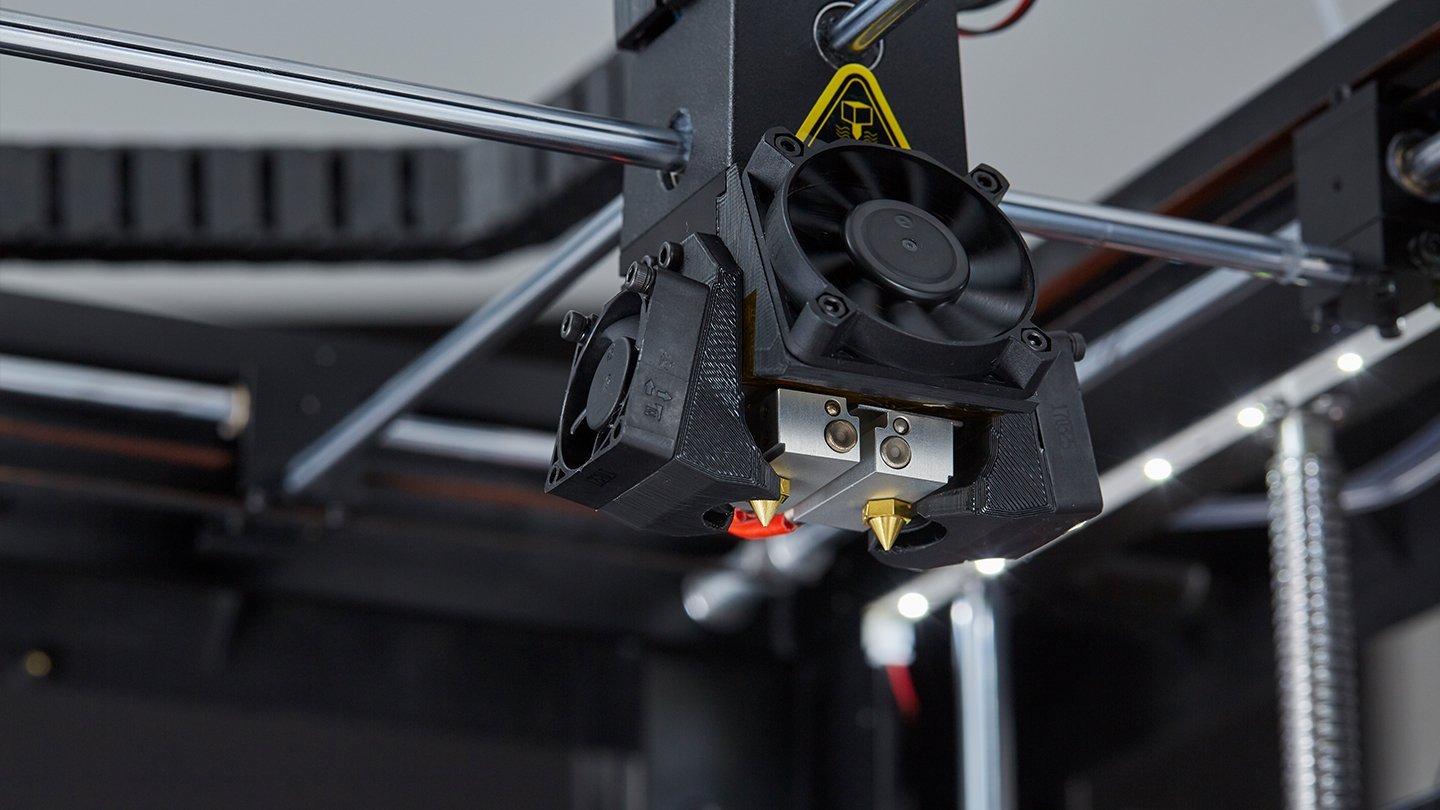

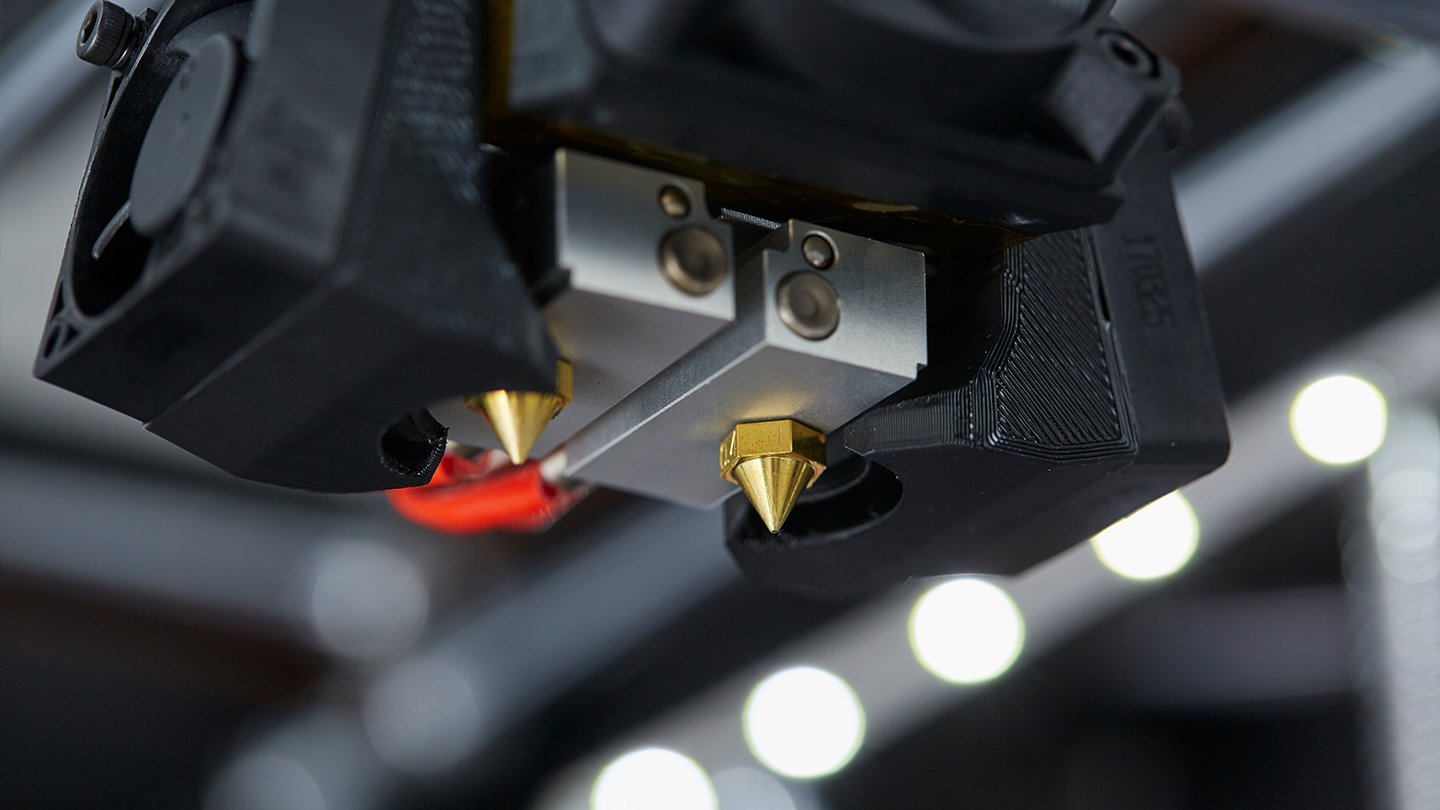

Print Head: Dual-head with electronic lifting system
Filament Diameter: 1.75mm
XYZ Step Size: 0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed: 30 – 150 mm/s

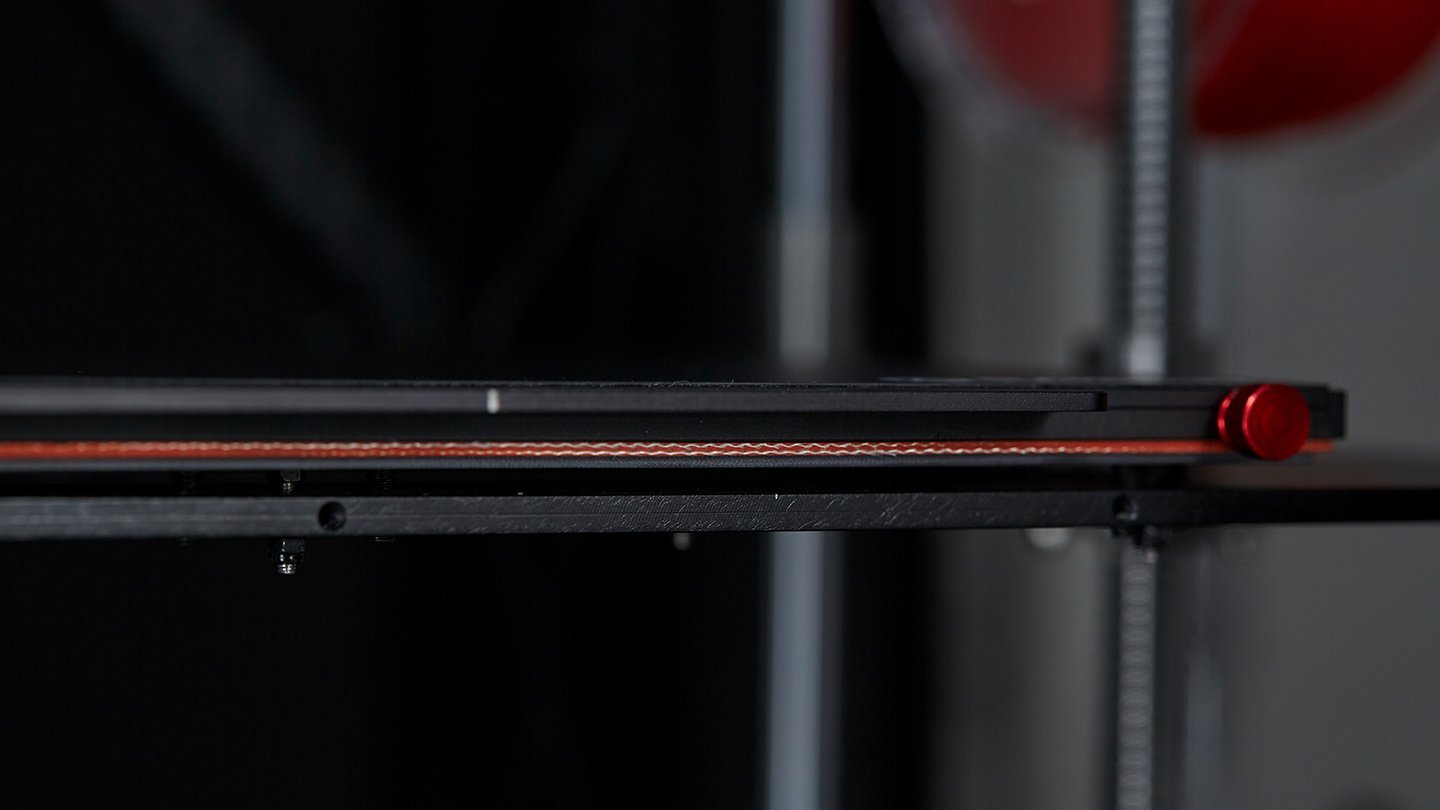

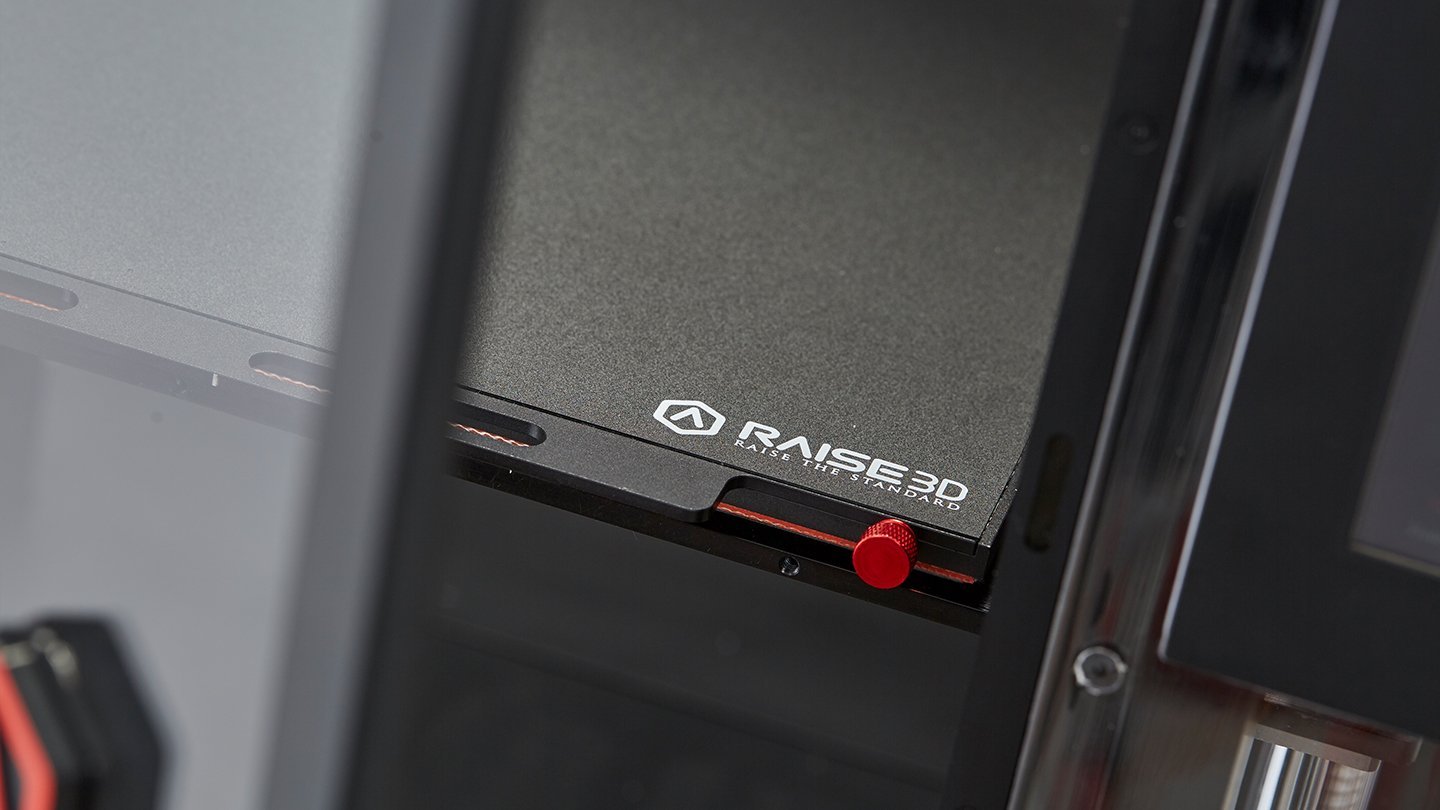

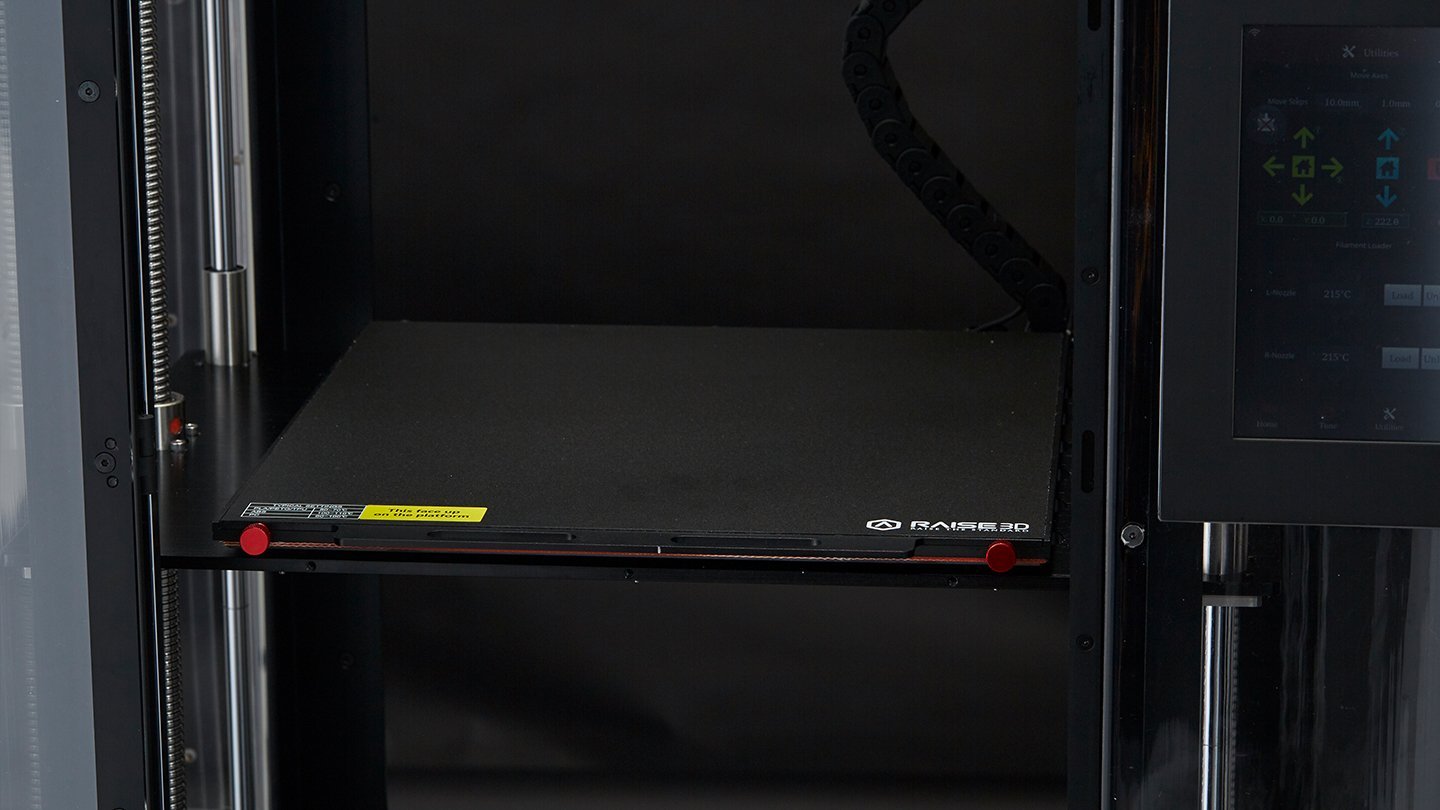

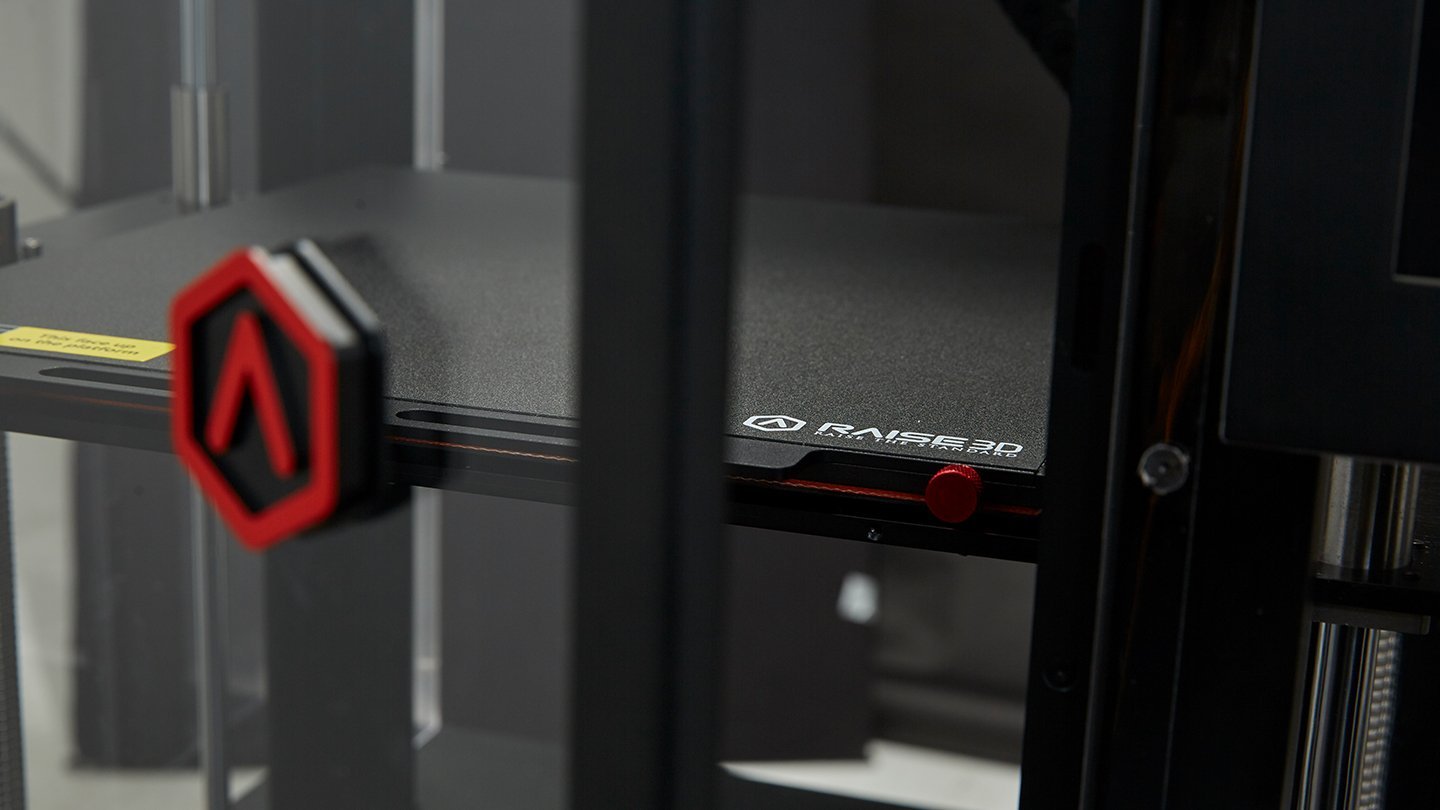

Build Plate: Heated aluminum build plate with magnetic holding
Max Build Plate Temperature: 110 ºC
Build Plate Material: Silicone
Build Plate Leveling: Pre-calibrated leveling
Supported Materials:
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / Glass Fiber Filled / Wood-Filled / Carbon Fiber Enforced
Nozzle Diameter: 0.2/ 0.4/ 0.6/ 0.8mm
Max Nozzle Temperature: 300 ºC
Operating Sound: 50 dB
Connectivity: Wi-Fi, LAN, USB port
Monitoring: Live camera
Electrical
- Power Supply Input: Universal 100-240 VAC, 50/60 Hz
- Power Supply Output: 600 Watts, 24 VDC
Software
- Slicing Software: ideaMaker
- Supported File Types: STL, OBJ
- Supported OS: WINDOWS/ IOS/ LINUX
- Machine Code Type: GCODE
Printer Controller

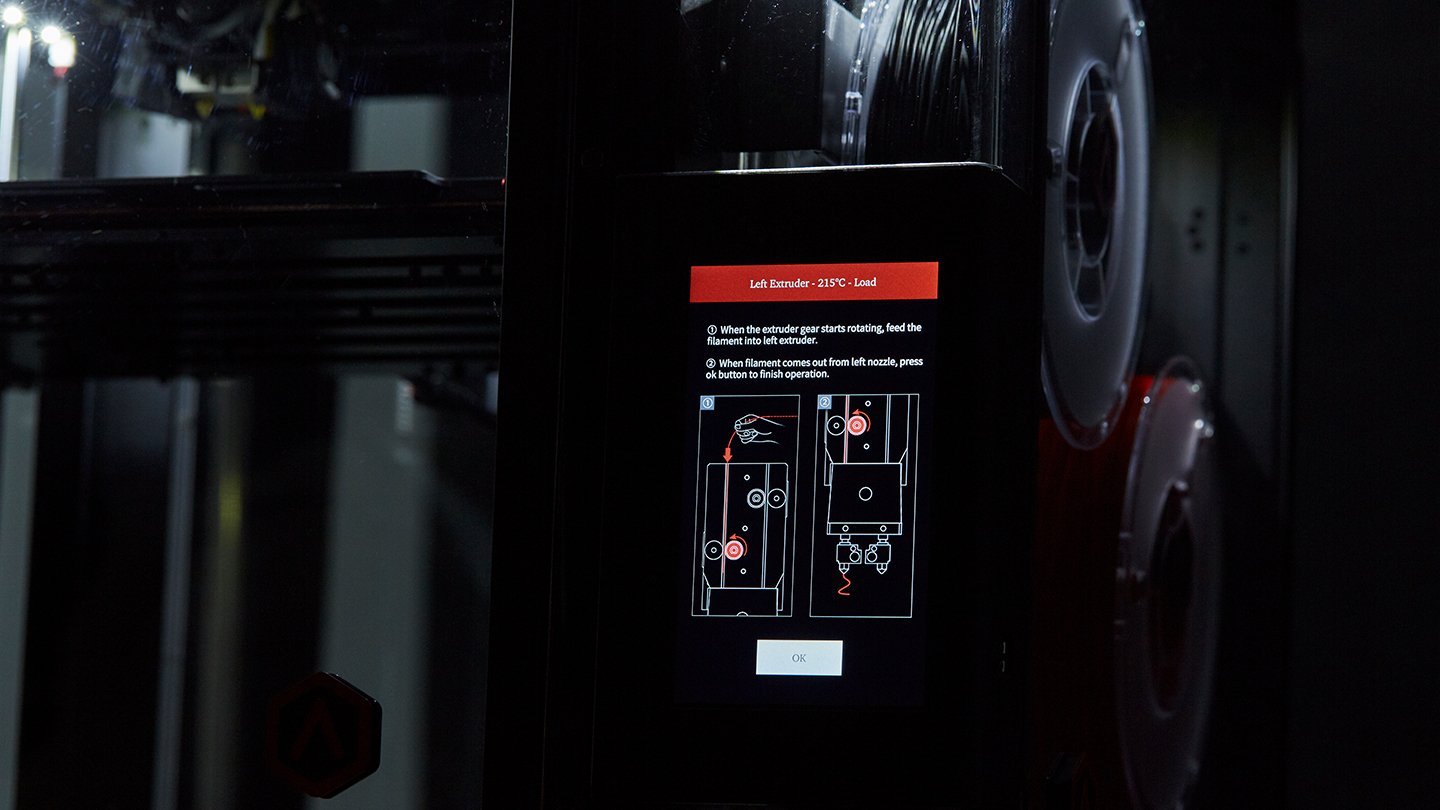

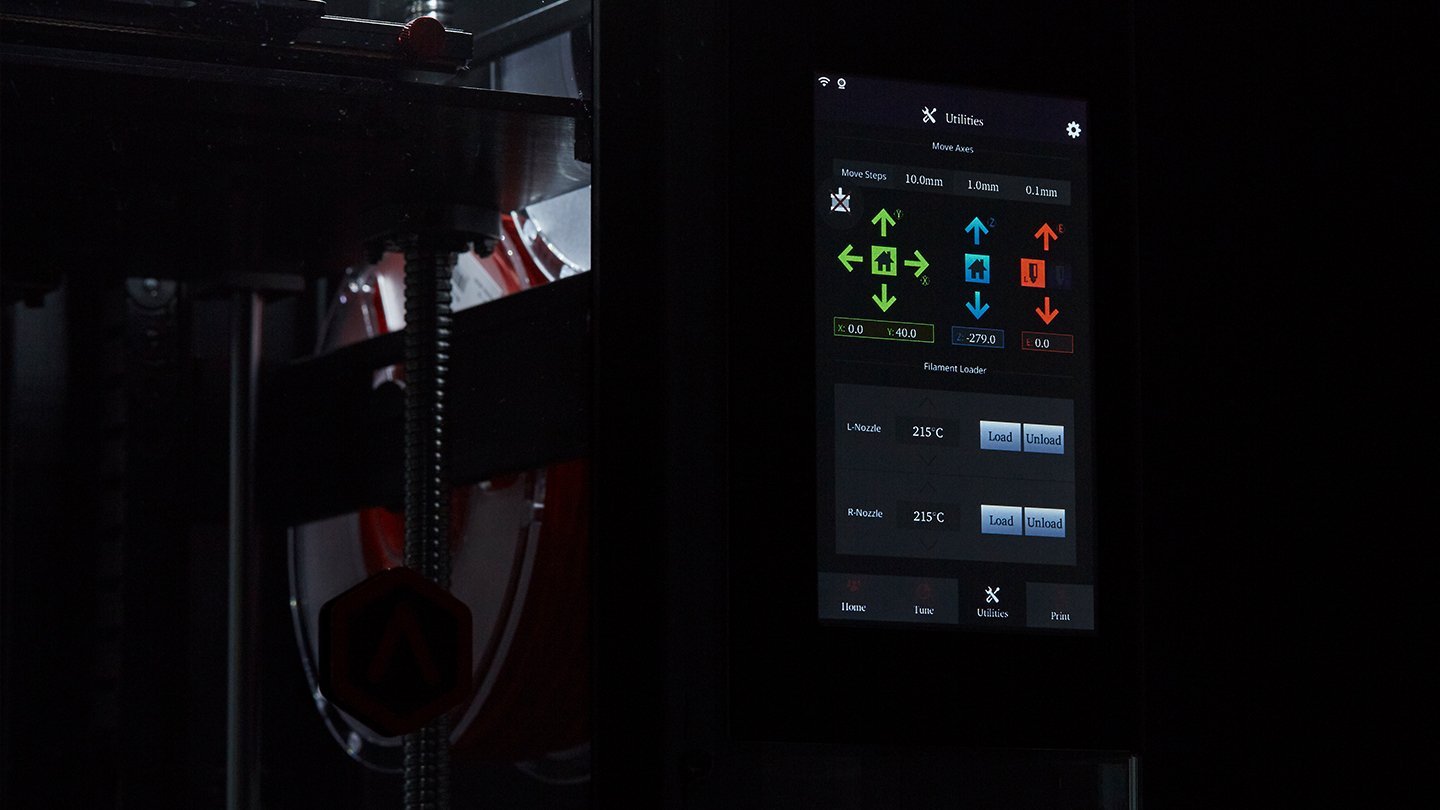

- User Interface: 7 inch Touch Screen
- Network: Ethernet 802.11b/g/n Wifi 2.4GHz/5GHz
- Resume Print after Power Outage: Second Generation
- Screen Resolution: 1024*600
- Motion Controller: ARM Cortex M7.400MHZ FPU
- Logic Controller: Freescale imx6, Quad core 1Ghz ARM processor
- Memory: 1GB
- Onboard Flash: 8GB
- OS: Embedded Linux
- Ports: Sdcard*1, Usb2.0*2, Ethernet*1
